Section 1
General Information
4-4 Programming & Operation MN722
Display Mode Continued

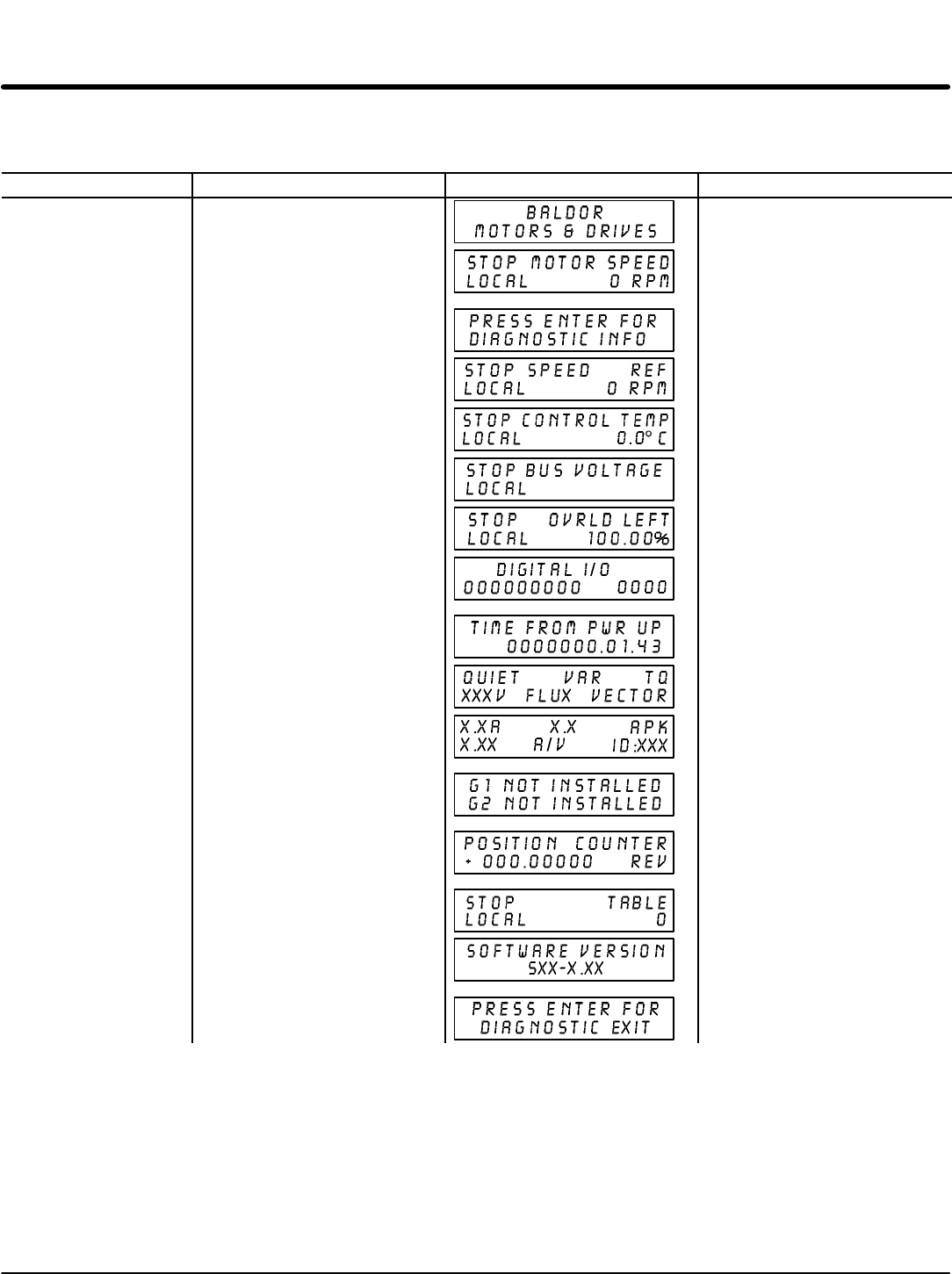

Display Screens & Diagnostic Information Access
Action Description Display Comments
Apply Power Logo display for 5 seconds.
Display mode showing motor
speed.
No faults present. Local keypad
mode. If in remote/serial mode,
press local for this display.
Press DISP key 6 times Scroll to Diagnostic Information
screen
Diagnostic Access screen.
Press ENTER key Access diagnostic information. First Diagnostic Information
screen.
Press DISP key Display mode showing control
temperature.
Press DISP key Display mode showing bus
voltage.
XXXV
Press DISP key Display mode showing %
overload current remaining.
Press DISP key Display mode showing opto
inputs & outputs states.
0=OPEN, 1=CLOSED.
Opto Inputs states (Left);
Opto Outputs states (Right).
Press DISP key Display mode showing actual
drive running time.
HR.MIN.SEC format.
Press DISP key Display mode showing operating
zone, voltage and control type.
Typical display.
Press DISP key Display mode showing continuous
amps; PK amps rating; amps/volt
scale of feedback, power base ID.
ID is displayed as a hexadecimal
value.
Press DISP key Display mode showing which
Group1 or 2 expansion boards
are installed and recognized.
Press DISP key Display mode showing motor
shaft revolutions from the REV
home set point.
Press DISP key Display mode showing parameter
table selected.
Press DISP key Display mode showing software
version and revision installed in
the control.
Press DISP key Displays exit choice. Press ENTER to exit diagnostic
information.
