Section 1
General Information
3-24 Receiving & Installation MN722
Standard Run 3 Wire Mode Connections
In Standard Run mode, the control is operated by the opto isolated inputs at J1-8 through
J1-16 and the analog command input. The opto inputs can be switches as shown in
Figure 3-18 or logic signals from another device. The external trip opto input at J1-16 is
active if connected as shown and the Level 2 Protection block, External Trip parameter is
set to ON.
For 420mA operation, refer to Table 3-10. Analog input 2 can then be used for 420mA
operation.

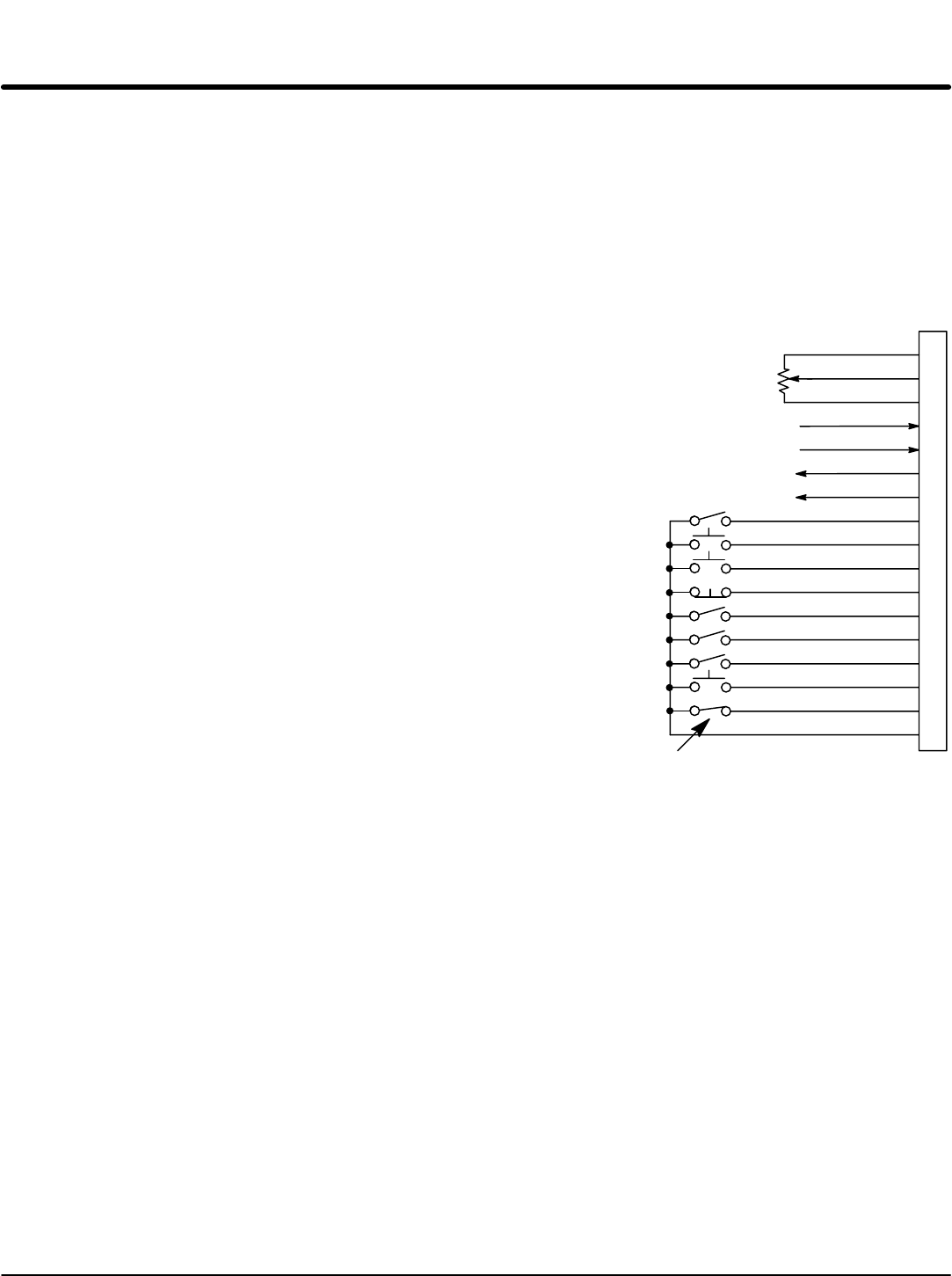

Figure 3-18 Standard Run 3-Wire Connection Diagram
See recommended terminal
tightening torques in Section 7.
8
9
10
11
12
13
14
15
16
17
Enable
Forward Run
Reverse Run
Stop
Jog
Accel/Decel
External Trip
Opto In Common
Analog GND
Analog Input 1
Pot Reference
Analog Input +2
Analog Input -2
Analog Out 1
Analog Out 2
1
2
3
4
5
6
7
Preset Speed #1
Fault Reset
J1
Refer to Figure 3-26.
Programmable Output
Programmable Output
J1-8 CLOSED allows normal control operation.
OPEN disables the control and motor coasts to a stop.
J1-9 MOMENTARY CLOSED starts motor operation in the Forward direction.
In JOG mode (J1-12 CLOSED), continuous CLOSED jogs motor in the
Forward direction.
J1-10 MOMENTARY CLOSED starts motor operation in the Reverse direction.
In JOG mode (J1-12 CLOSED), CONTINUOUS closed JOGS motor in the
Reverse direction.
J1-11 MOMENTARY OPEN causes motor to decel to stop (depending on Keypad
Stop Mode parameter setting). Motor current continues to be applied to the
motor.
J1-12 CLOSED places control in JOG mode, Forward and Reverse run are used
to jog the motor.
J1-13 CLOSED selects group 2.
OPEN selects ACC / DEC / S-CURVE group 1.
J1-14 CLOSED selects preset speed #1, (J1-12, will override this preset speed).
OPEN allows speed command from Analog input #1 or #2 or Jog.
J1-15 CLOSED to reset fault condition.
OPEN to run.
J1-16 If J1-16 is connected, you must set Level 2 Protection block, External Trip
to ON to activate the opto input.
CLOSED allows normal control operation.
OPEN causes an external trip to be received by the control. The control
will disable and display external trip. When this occurs, the motor stop
command is issued, drive operation is terminated and an external trip fault
is displayed on the keypad display (also logged into the fault log).
Command Pot or
0-10VDC
5KW
