Section 1
General Information
Receiving & Installation 3-15MN722

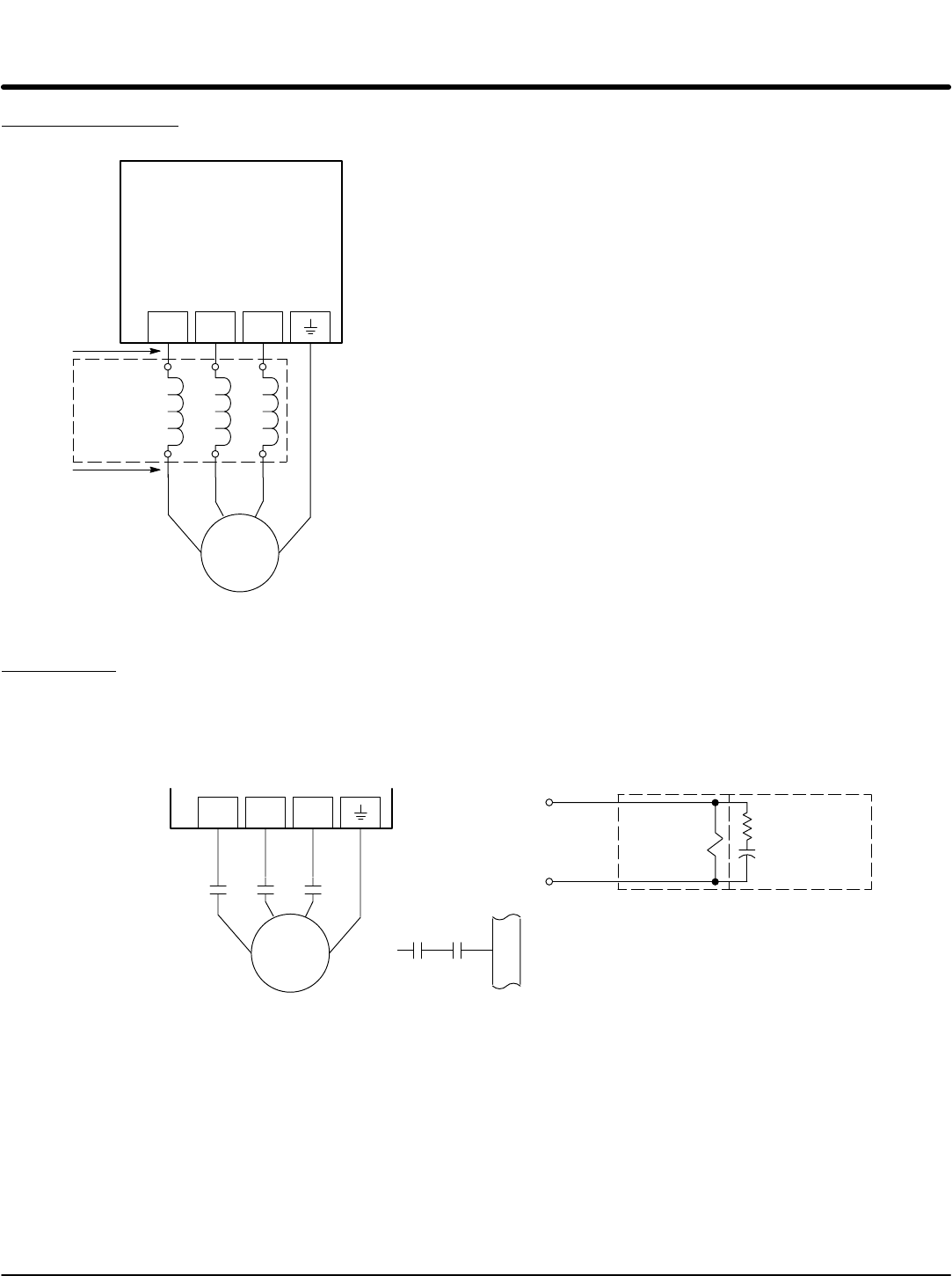

Motor Connections Motor connections are shown in Figure 3-5.
Figure 3-5 Motor Connections
* Optional components not provided with 22H Control.
* AC Motor
Baldor
Series 22H
Control
Note 1
*Optional
Load
Reactor
Note 1
A1 B1 C1
A2 B2 C2
T1 T2 T3
T1
T2 T3
G
Note 2
Notes:
1. Metal conduit should be used. Connect conduits so the use of Load
Reactor or RC Device does not interrupt EMI/RFI shielding.
2. See Line/Load Reactors described previously in this section.
3. Use same gauge wire for Earth ground as for L1, L2 and L3.
Note 3
See recommended terminal tightening torques in Section 7.
M-Contactor If required by local codes or for safety reasons, an M-Contactor (motor circuit contactor)
may be installed. However, incorrect installation or failure of the M-contactor or wiring
may damage the control. If an M-Contactor is installed, the control must be disabled for
at least 20msec before the M-Contactor is opened or the control may be damaged.
M-Contactor connections are shown in Figure 3-6.
Figure 3-6 Optional M-Contactor Connections
T1 T2 T3
* Optional
RC Device
Electrocube
RG1781-3
T1
T2 T3
G
7
8
9
*
M Enable
J1
* Motor
MMM
* M-Contactor
To Power Source
(Rated Coil Voltage)
M=Contacts of optional M-Contactor
Note: Close “Enable”
after “M” contact closure.
See recommended terminal
tightening torques in Section 7.
