Section 1
General Information
Programming & Operation 4-3MN722

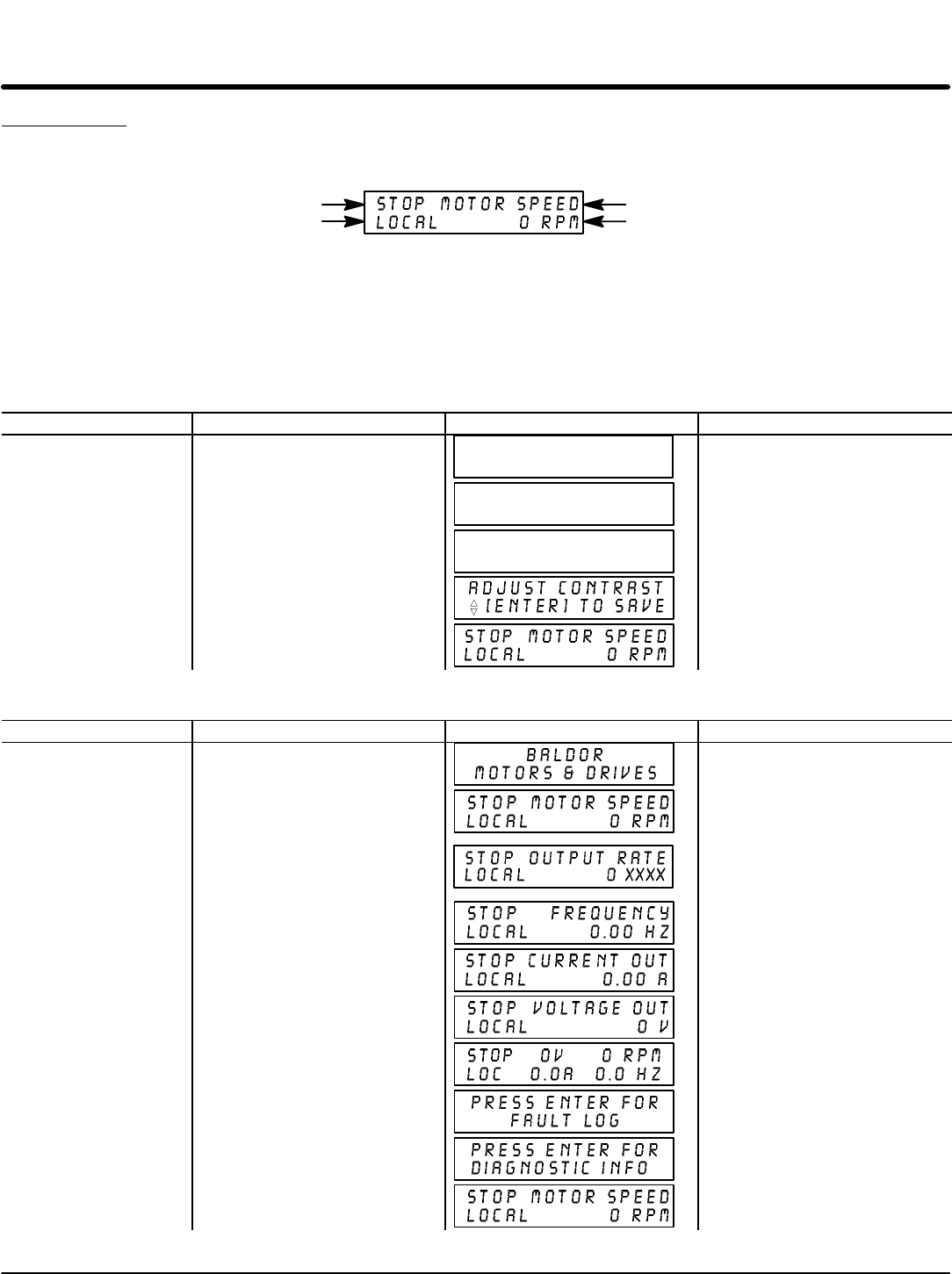

Display Mode The control is in the DISPLAY MODE at all times except when parameter values are
changed (Programming mode). The Keypad Display shows the status of the control as in
the following example.
Motor Status
Control Operation
Output Condition
Value and Units
The DISPLAY MODE is used to view operating status, Diagnostic INFO and the Fault
Log. The description of how to do these tasks are described on the following pages.
Adjusting Display Contrast When AC power is applied to the control, the keypad should display the status of the
control. If there is no visible display, use the following procedure to adjust the contrast of
the display.
(Contrast may be adjusted in display mode when motor is stopped or running)
Action Description Display Comments
Apply Power No visible display
Press DISP Key Places control in display mode
Press SHIFT SHIFT Allows display contrast
adjustment
Press Y or B Key
Adjusts display intensity
Press ENTER Saves level of contrast and exits
to display mode
Typical display
Display Mode Screens
Action Description Display Comments
Apply Power Logo display for 5 seconds.
Display mode showing motor
speed.
No faults present. Local keypad
mode. If in remote/serial mode,
press local for this display.
Press DISP key Display mode showing custom
unit output rate.
Output rate display will only
appear if Value At Speed
parameter is entered.
Press DISP key Display Frequency
Press DISP key DIsplay Current
Press DISP key DIsplay Voltage
Press DISP key Combined DIsplay
Press DISP key Screen to enter Fault Log
Press DISP key Screen to enter Diagnostic Menu
Press DISP key Exit Display mode and return to
Motor Speed display
