B-2 Appendix B MN722

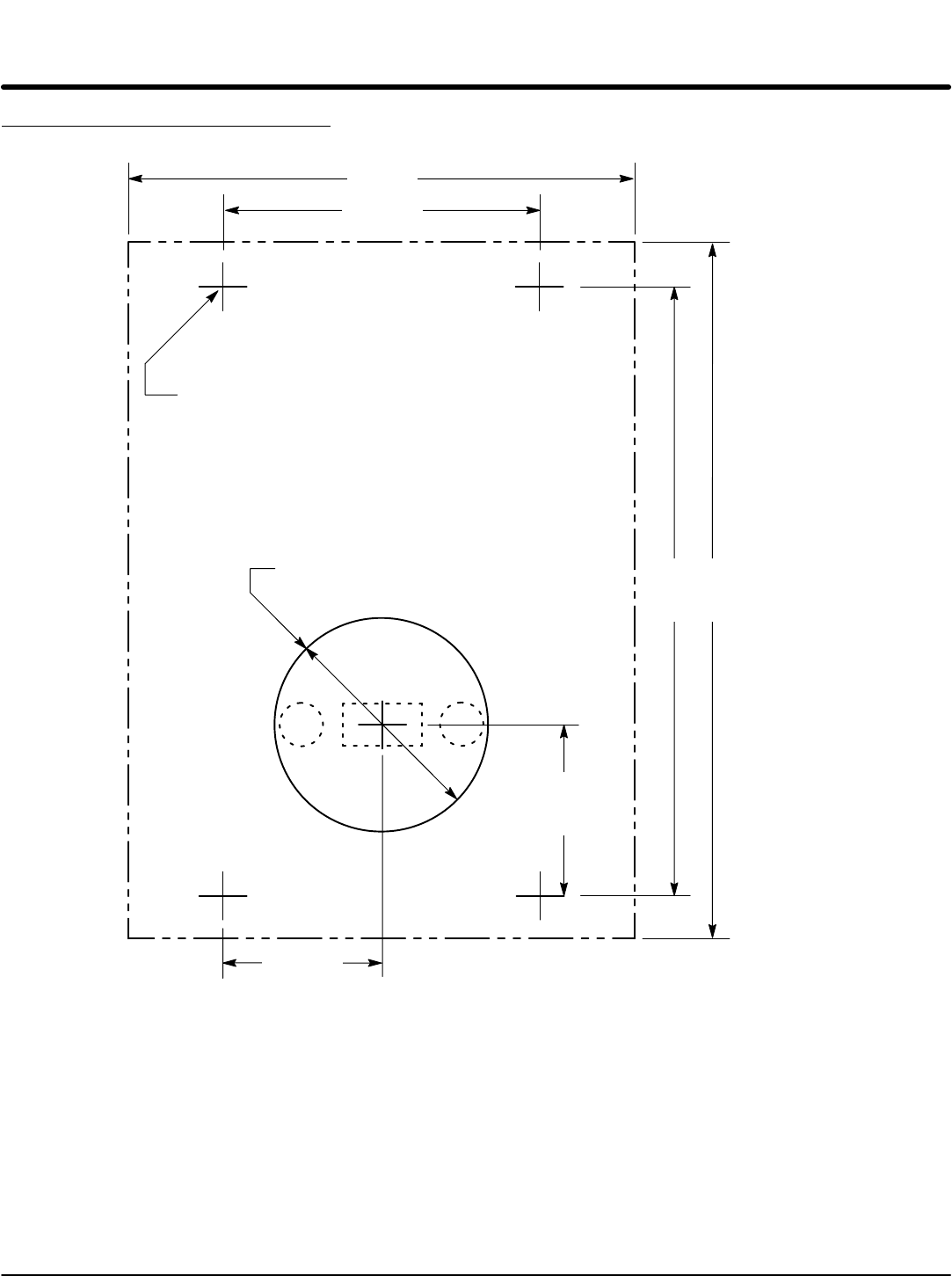

Remote Keypad Mounting Template
Four Places
Tapped mounting holes, use #29 drill and 8-32 tap
(Clearance mounting holes, use #19 or 0.166 drill)
4.00
2.500
1.250
1.340
4.810
5.500
1-
11
/
16
diameter hole
Use 1.25 conduit knockout
(B)
(A) (A)
(A) (A)
Note: Template may be distorted due to reproduction.
