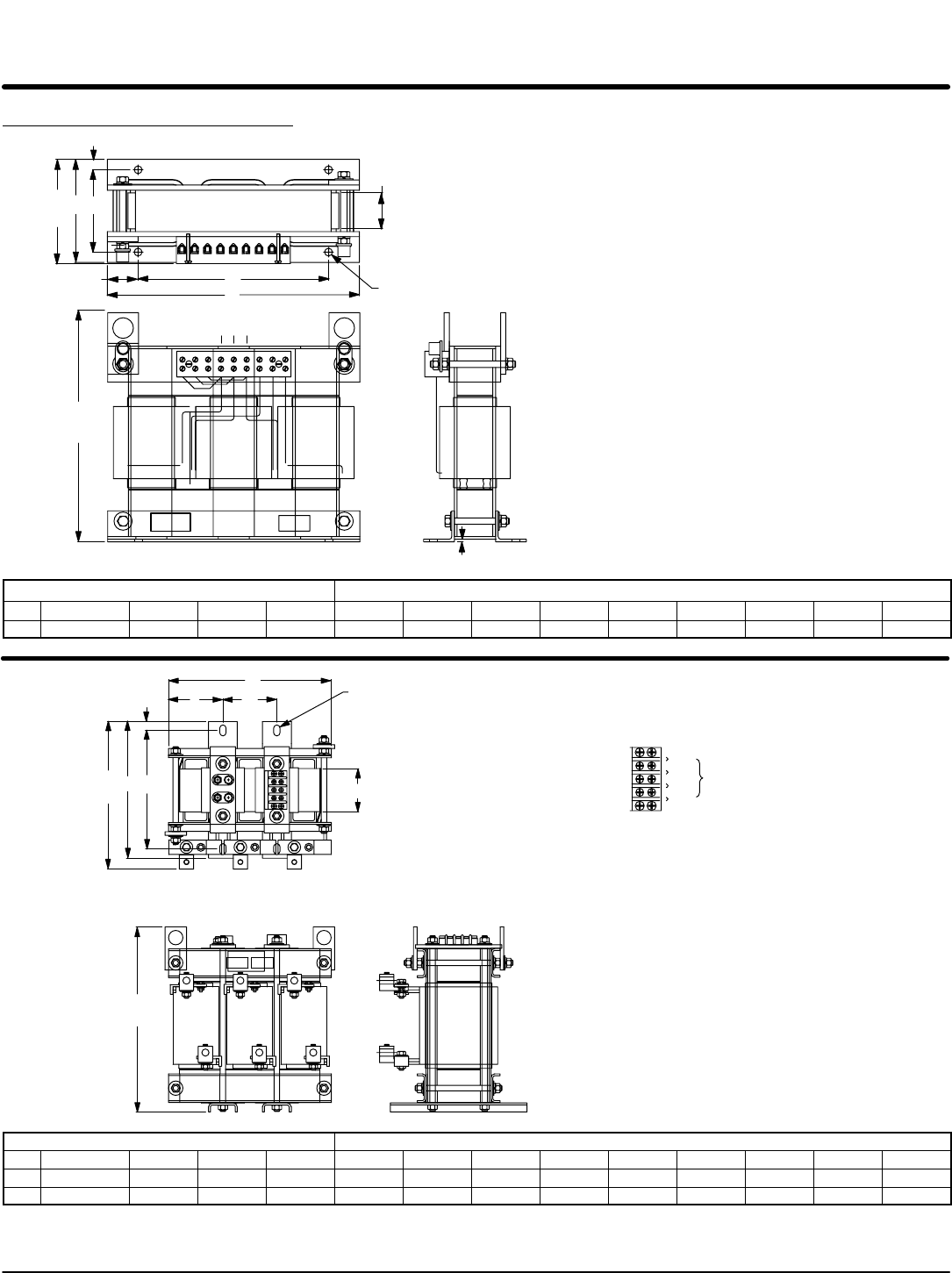

Specifications, Ratings & Dimensions 7-19MN722
EK Controls - Boost Regulators
0.380
4 PLACES
G
Max
F
I
D
X3
X2
L3
L1
X1
L2
.13
“HR”
B
STACK
A
MAX
C
H
E
L1A
L2A
L3A
Electrical Specification/Approximate Weight Dimensions - inches
HP Baldor P/N mH Amps Lbs A B C D E F G H I
60 V2080709 1.20 68 80 11.75 2.25 5.50 9.25 4.50 12.25 5.75 0.50 1.50
TERMINAL BLOCK
4 PLACES
.44” DIA X .75” LONG SLOT
F
I D
H
G
MAX
”HR”
C
X1 X2 X3
L1 L2 L3
E
A
MAX
B
STACK
To Control J3
Connector
L1A
L2A
L3A
Electrical Specifications/Approximate Weight Dimensions - inches
HP Baldor P/N mH Amps Lbs A B C D E F G H I
75 V2080710 1.00 85 100 13.50 3.00 9.50 3.75 8.25 11.32 10.75 0.62 3.79
100 V2080711 0.75 106 125 15.50 3.00 9.25 3.75 8.25 11.32 11.00 0.63 3.79
