45
With positive (+) settings, the volume will increase as you play above the
C4 note on the keyboard, and will decrease as you play below C4.
With negative (–) settings, the volume will decrease as you play above the
C4 note on the keyboard, and will increase as you play below C4.
NOTE
Keyboard Track operates according to the pitch that is controlled by pitch
bend, and transpose. It is not affected by pitch changes produced by vi-
brato or Virtual Patch.
DRIVE/WS (Drive/Wave Shape)
In this page you can set the Drive or Wave Shape parameters. This lets you
add distortion to the sound and give it a distinctive impact.
TYPE (Wave Shape Type)...................................[OFF, DRIVE…LVL BOOST]
This switches wave shaping on/off, and selects the type. Wave shaping
modifies the input waveform by applying a transformation of the type you
specify here, and produces an output waveform that includes the compo-
nents of both the input waveform and the transformation shape. “WS
DEPTH” specifies the depth of this effect.
Some settings may produce noise.
OFF
DRIVE
NOTE
Only the Drive setting differs from the wave shape
effect.
DECIMATR
HARD.CLIP
OCT SAW
MULTI.TRI
MULTI.SIN
SB.OSC.SAW,
S
B.OSC.SQU,
SB.OSC.TRI,
SB.OSC.SIN
LVLBOOST
NOTE
This may produce high output volumes than other
wave shape types.
Wave Shape/Drive is off.
Drive will be applied. The amount of distortion is
adj
usted by the output level of each oscillator in the
MIXER page.(J p. 41)

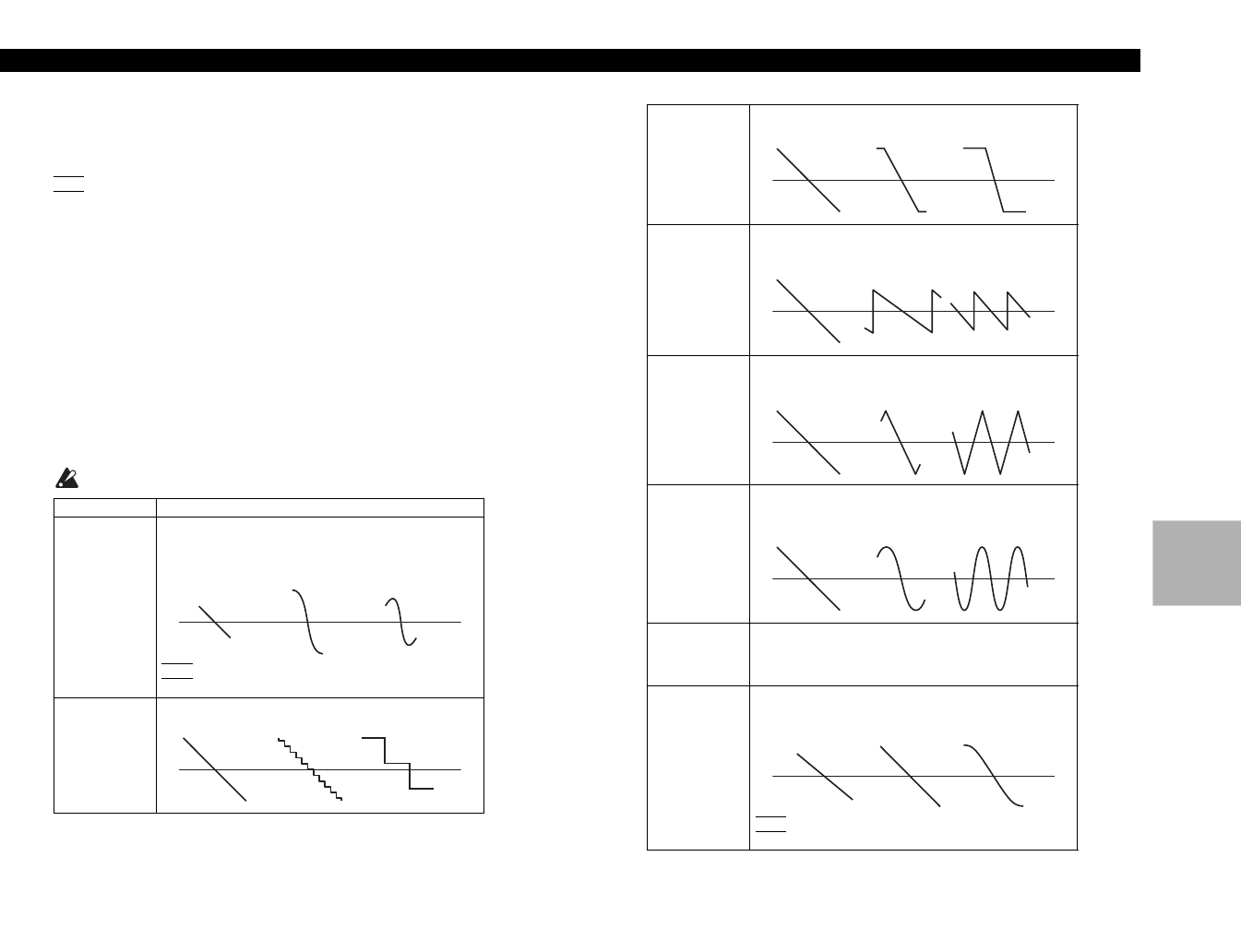

Lowers the sampling frequency.
DEPTH: 000 DEPTH: 064
DEPTH: 127
DEPTH: 000 DEPTH: 064
DEPTH: 127
Flattens any portion of the waveform above the limit.
Cuts the portion of the waveform above the threshold
level and inver
ts it to keep it within limits.
Sending a sawtooth wave through this will produce a tri-
angle
wave.
Sending a sawtooth wave through this will produce a
si
ne wave.
The selected waveform will sound one octave below
oscil
lator 1. “DEPTH” adjusts the mix amount relative to
oscillator 1.
Boosts the output level. “WS DEPTH” adjusts the
amount
of boost.
DEPTH: 000 DEPTH: 064
DEPTH: 127
DEPTH: 000 DEPTH: 064
DEPTH: 127
DEPTH: 000
DEPTH: 064
DEPTH: 127
DEPTH: 000
DEPTH: 064
DEPTH: 127
DEPTH: 000 DEPTH: 064
DEPTH: 127
