Top-right cover
1. Before proceeding, remove the following components:
DIMM cover. See
DIMM cover and DIMM on page 57.
Formatter cover. See
Formatter cover and formatter PCA on page 60.
2. Remove two screws (callout 1).

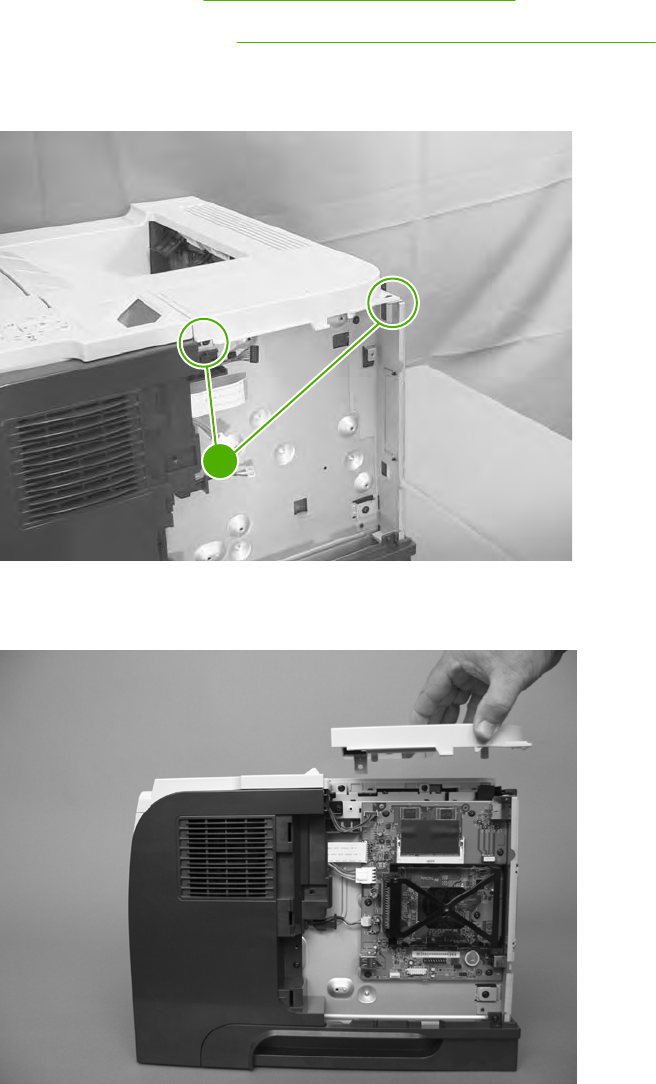

Figure 2-40 Remove the top-right cover (1 of 2)
1
3. Lift the cover off of the product to remove it.
Figure 2-41 Remove the top-right cover (2 of 2)
ENWW Removal and replacement procedures 73
