The product uses an on-demand fuser method. The toner image is permanently affixed to the printing
paper by heat and pressure.

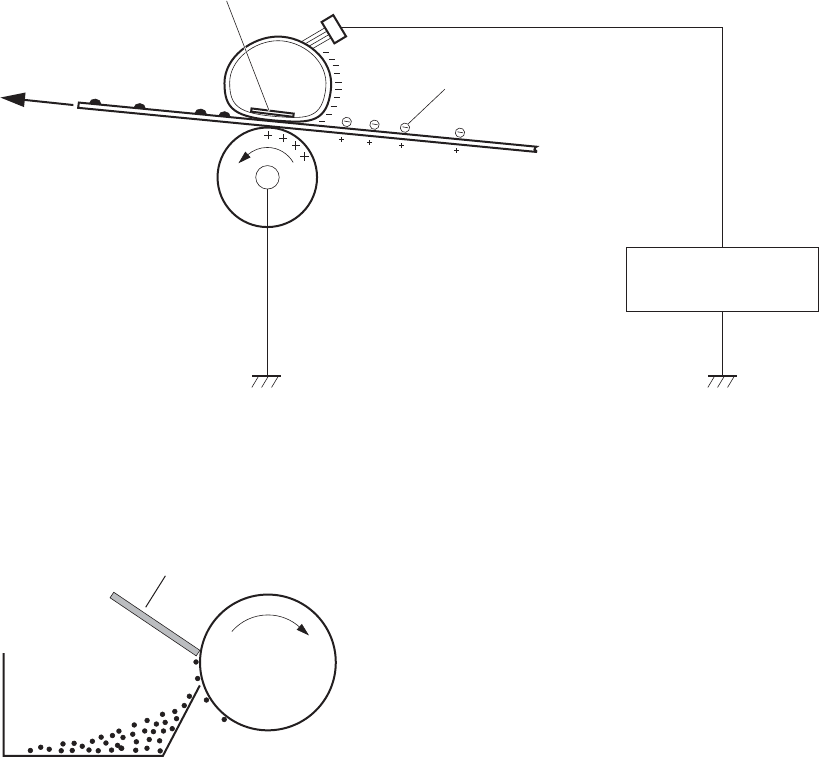

Figure 1-23 Fusing
Media
Toner
Fuser film
Fuser heater
Pressure roller
Brush
Fuser bias
Cleaning stage
Step 7: The cleaning blade scrapes the residual toner off of the photosensitive drum and deposits it into
the waste toner case.
Figure 1-24 Drum cleaning
Toner collection box
Photosensitive
drum
Cleaning blade
ENWW Image-formation system 31
