Left cover
1. Remove the rear-door assembly. See Rear-door assembly on page 62.
2. Remove one screw (callout 1).

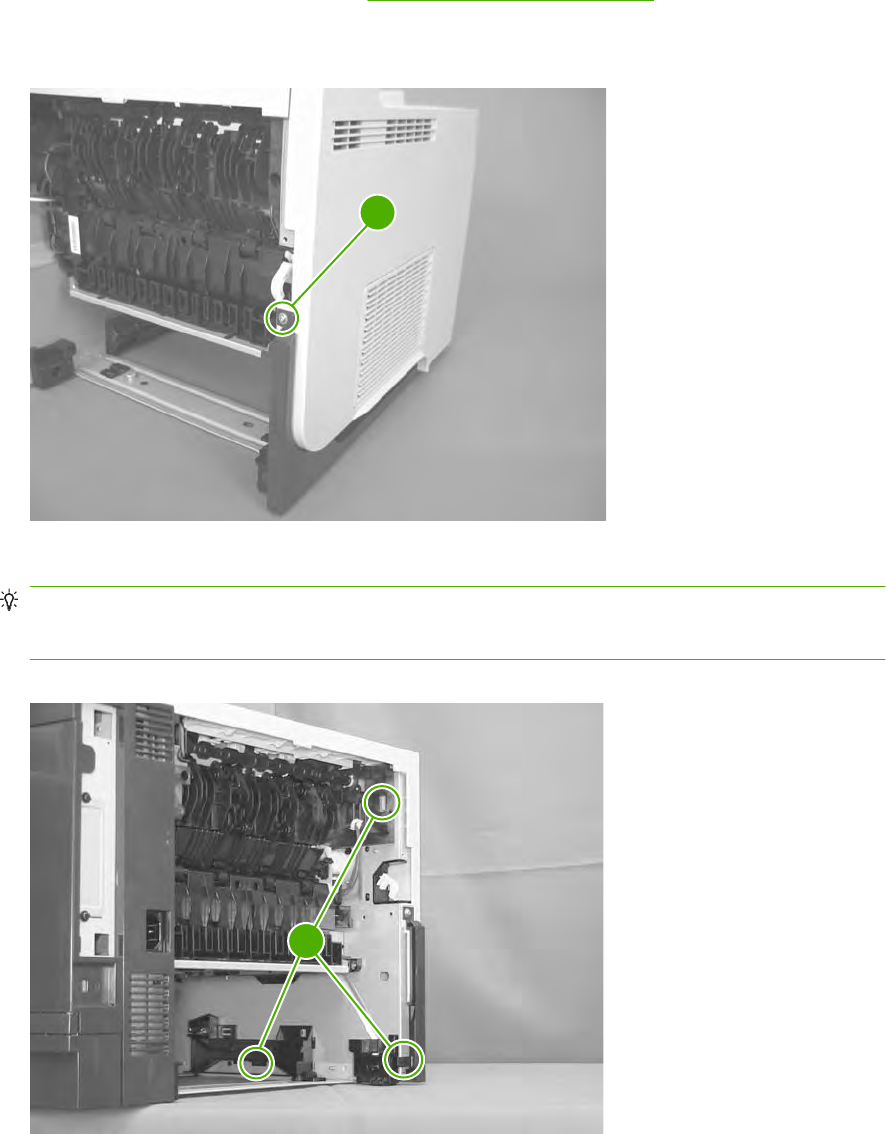

Figure 2-28 Remove the left cover (1 of 4)
1
3. Release three tabs (callout 1).
TIP: The tab inside the cassette cavity is located below the plastic cassette rail. It might be easier
if slightly lift up the left side of the product, and use a small flat blade screwdriver to release this
tab.
Figure 2-29 Remove the left cover (2 of 4)
1
66 Chapter 2 Removal and replacement ENWW
