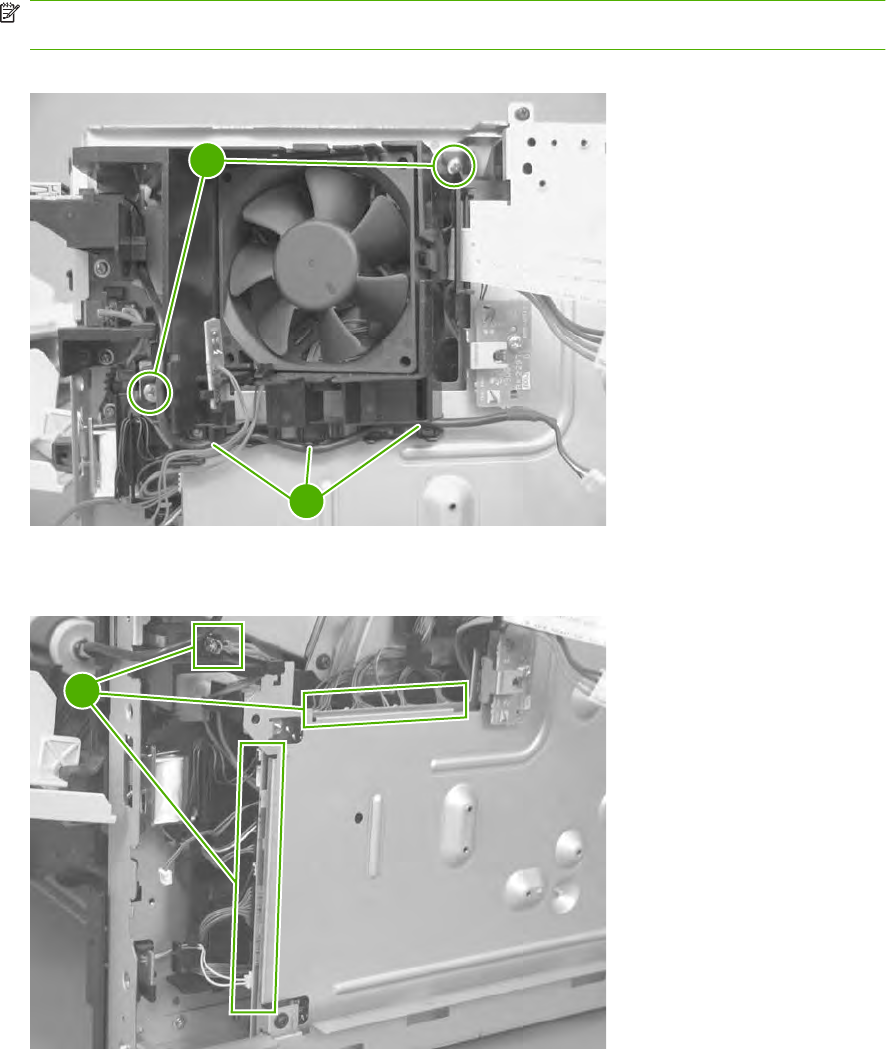

3. Remove two screws (callout 1), and then remove the fan assembly.
NOTE: As you remove the fan assembly, release the USB wire harness from the retainers along
the bottom of the assembly (callout 2).
Figure 2-99 Removing the ECU (2 of 9)
1
2
4. Disconnect 12 connectors (callout 1).
Figure 2-100 Remove the ECU (3 of 9)
1
ENWW Removal and replacement procedures 111
