39
USING PAPER, CARDS, ENVELOPES, TRANSPARENCIES, AND LABELS
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Using the Single Envelope Slot
The single envelope slot allows you to print on either a No. 10 or
a DL size envelope. Other envelope sizes are not supported with
the single envelope slot.
N OTE
Do not remove the paper from the IN tray, and be sure the card guide is in the
down position, before using the single envelope slot.
1. Remove a No. 10 or a DL size envelope from its packaging.

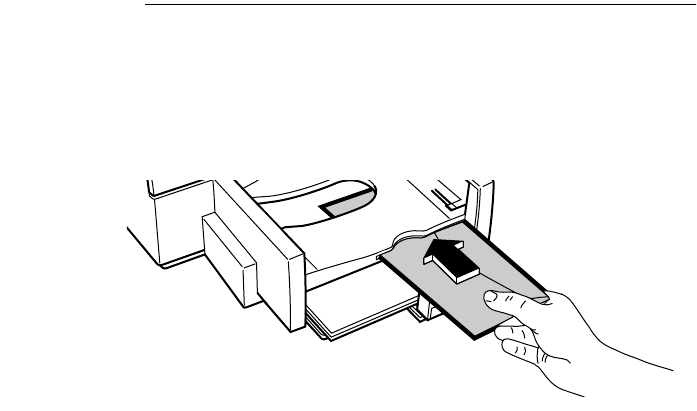

2. Slide the envelope evenly into the single envelope slot, address
side down (flap side up).
Make sure the creased flap edge of the envelope aligns with the
right side of the single envelope slot.
3. Slide the envelope through the slot until it stops.
Make sure the envelope is inserted all the way into the slot and
that it is not skewed or bent.
4. Set the software to print on the size and type of envelope now in
the printer.
5. Be sure to reset the software for the paper in the IN tray after
printing on the envelope is completed.
2184005
