17
Servicing Wartung Entretien Servicio Manutenzione Underhåll

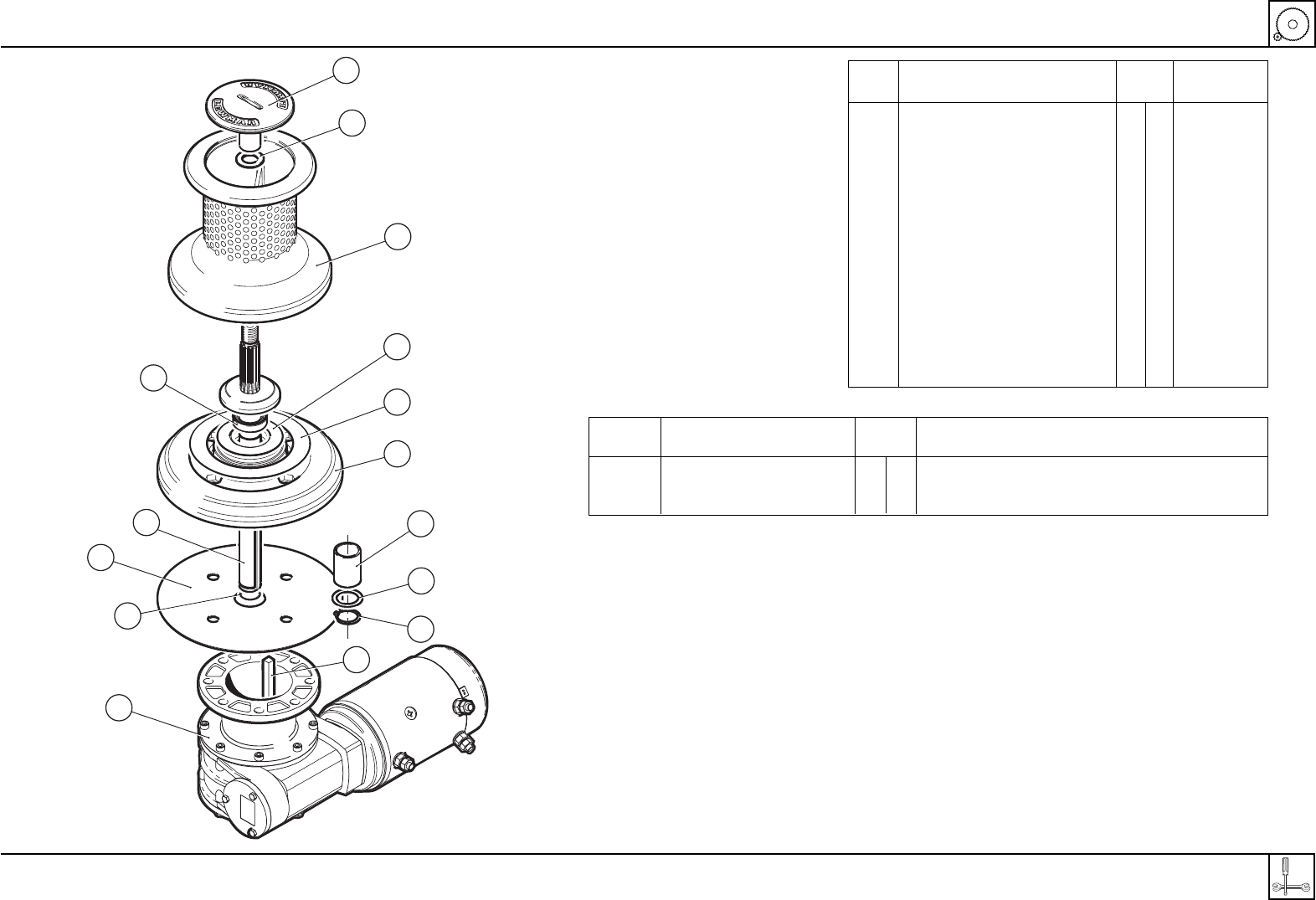

● Parts ●
Bauteile
●
Pièces
●
Parti
●
Delar
●
Piezas
5
12
14
13
11
10
3
8
9
7
2
6
1
4
15
Quantity
Service Kits Description C4 C5 Parts Included in Kit
66000084 BASEPLATE ASSEMBLY 1 1 3 (1), 8 (1), 10 (1)
66000083 BEARING, SEAL & CIRCLIP KIT 1 1 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 12 (1), 13 (1), 14 (1)
Quantity Part or Service
Item No Description C4 C5 Kit Number
1 DRUM CAP 1 1 66200244
2 DRUM 1 1 66200239
3 BASEPLATE ASSEMBLY 1 1 66000084
4 MAINSHAFT, WITH CLUTCH CONE 1 1 66000082
5 BASE MAT (GASKET) 1 1 66200248
6 WASHER 1 1 66000083
7 RUBBING WASHER 1 1 66000083
8 DOUBLE LIP SEAL 1 1 66000083
9 ADHESIVE WASHER 1 1 66000083
10 PLAIN BEARING 1 1 66000083
11 DELRIN WASHER 1 1 66000083
12 SPIROL CLIP 1 1 66000083
13 EXTERNAL CIRCLIP 1 1 66000083
14 DRIVE KEY 1 1 66000083
15A C4-12V MOTOR/GEARBOX 1 - 68000534
15B C4-24V MOTOR/GEARBOX 1 - 68000535
15C C5-12V MOTOR/GEARBOX - 1 66810011
15D C5-24V MOTOR/GEARBOX - 1 66810012
