Lewmar C5 Model Vehicle User Manual



12
Installation Installation Installation Instalación Installazione Installation
Wiring Elektrische Leitungen Câblage Cableado
Cablaggio
Ledningar
C5 - 12V & 24V

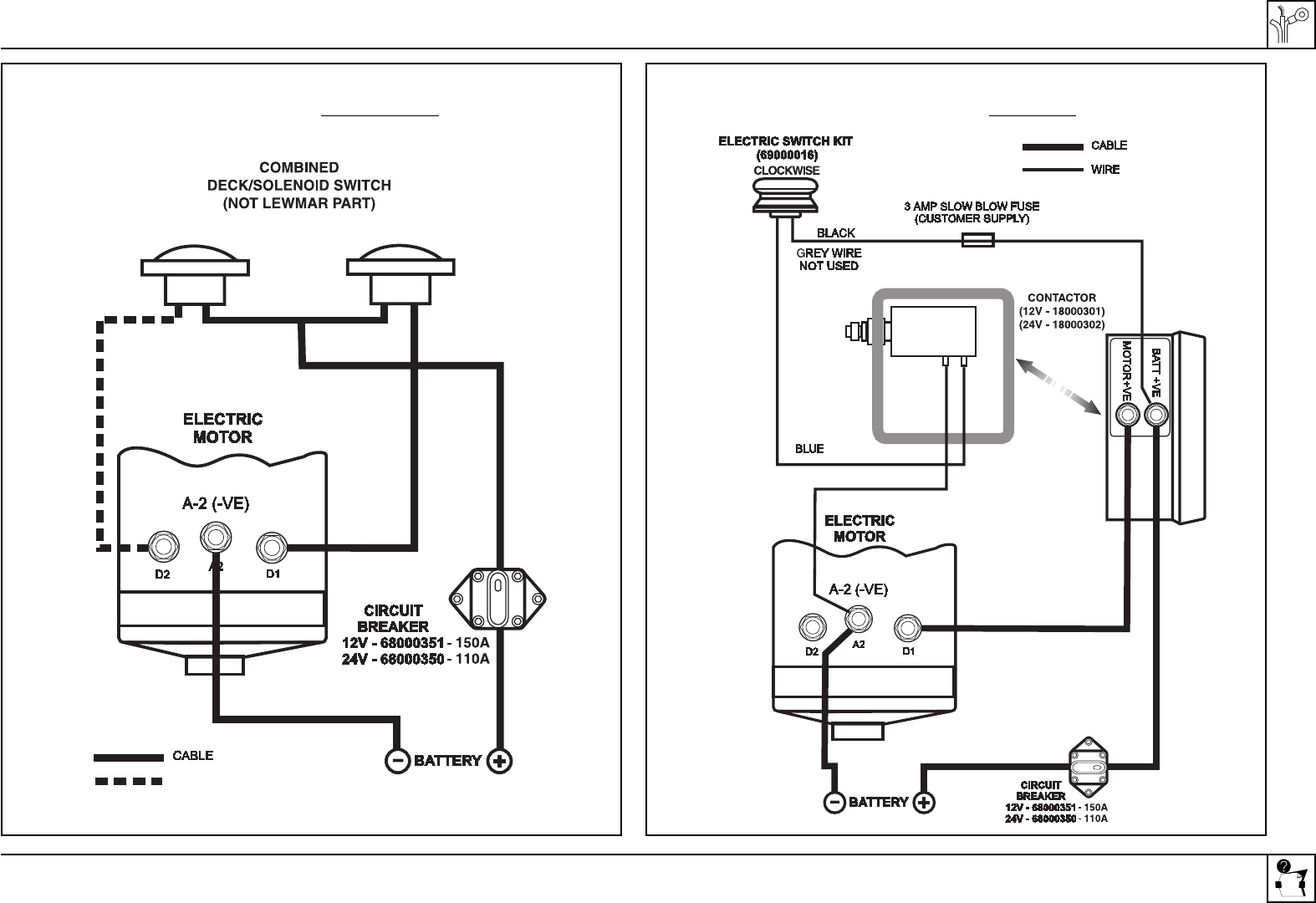

Split Field Single & Dual Direction Solenoid Switch Wiring Diagram
C5 - 12V & 24V
Split Field Single Direction Windlass Control Box Wiring Diagram
ANTI-
CLOCKWISE
CLOCKWISE
DUAL DIRECTION CABLE
