176 Removing and replacing parts Q1860-90918
Tray indicator assembly
1 Remove the base frame from the 500-sheet feeder assembly (see page 174).
2 Remove the left front corner cover screw (callout 1).
3 Remove the cover.
4 Remove the top self-tapping screw.
5 Remove the tray indicator assembly (callout 2).

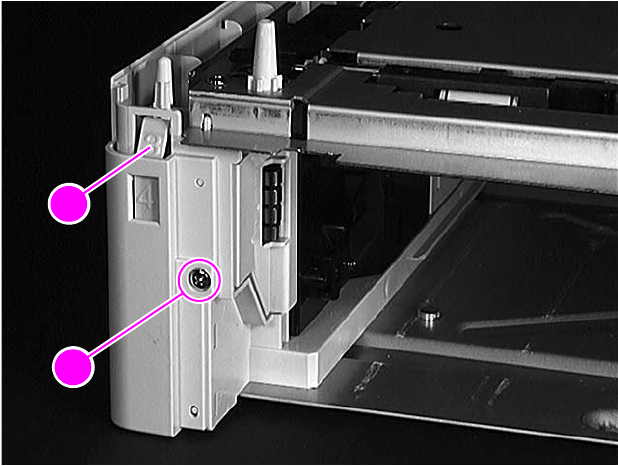

Figure 114. Tray indicator assembly removal
2
1
2
2
