Q1860-90918 6 Removing and replacing parts 113
Covers
Rear door and rear output bin

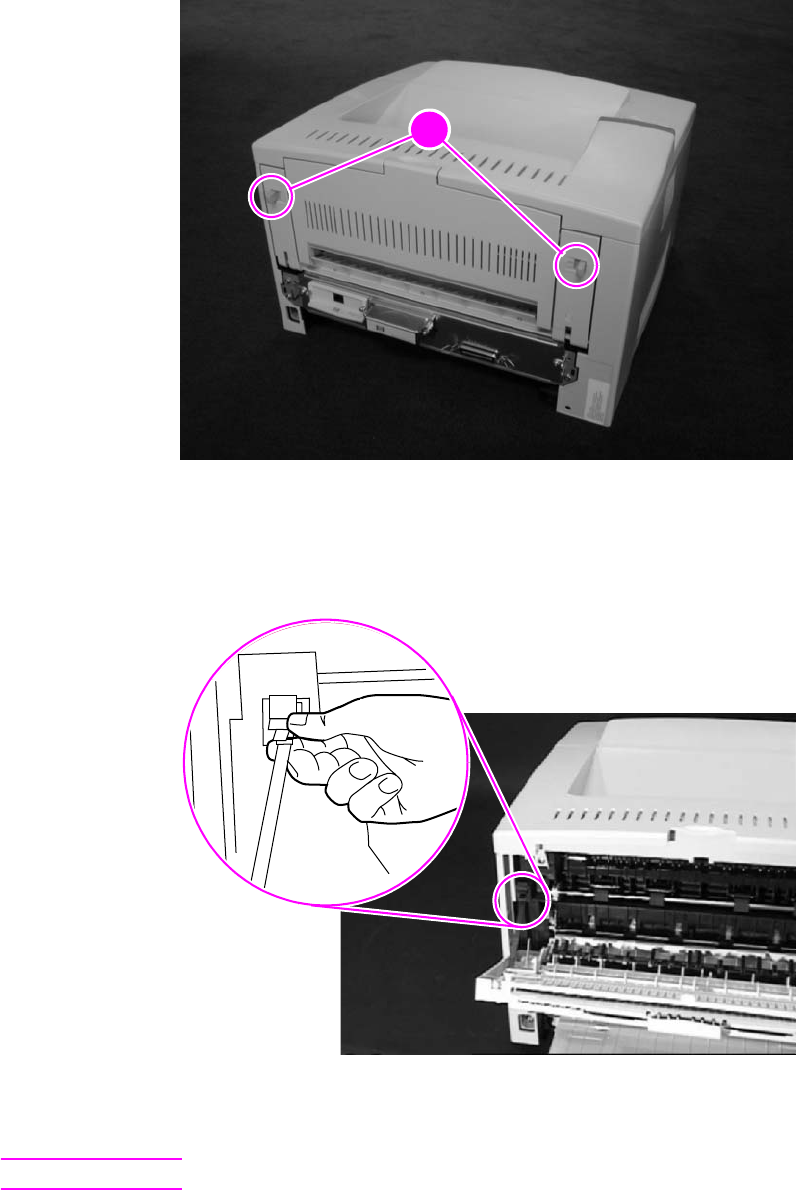

1 Face the rear of the printer. Press the two locking tabs (callout 1) toward the center of the
printer to release the rear door.
Figure 37. Rear door and rear output bin removal (1 of 2)
2 The plastic support strap is located on the left side of the printer. To release the strap, pinch
the top of the strap by placing your index finger underneath the strap and your thumb on top
of the tab. Squeeze and lift up from the bottom, while pulling the strap out.
Figure 38. Rear door and rear output bin removal (2 of 2)
3 Slide the door to the left, and then remove it from the printer.
Note For reassembly, insert the pin on the left side of the cover first.
2
1
