Q1860-90918 6 Removing and replacing parts 135
4 Rotate the bottom of the assembly out, and then lower it to release the locating tab
(callout 4) and remove the main gear assembly.
CAUTION Be careful when you remove the assembly. The toner cartridge engagement arm (callout 5) can
break if it is not handled carefully.

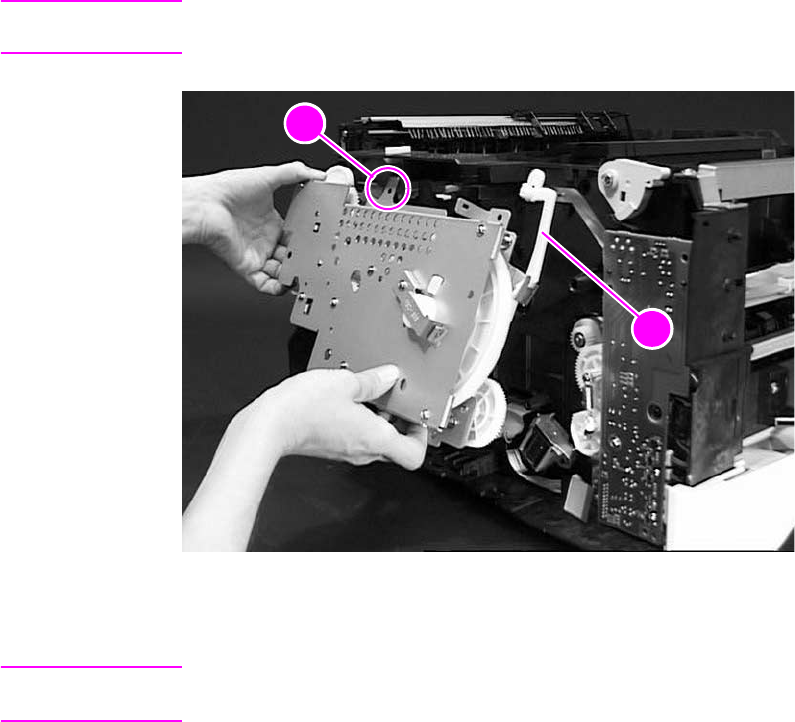

Figure 64. Main gear assembly removal (2 of 2)
Note Remember to reconnect the cable at the top of the main gear assembly after you reinstall the
assembly.
2
2
4
5
