174 Removing and replacing parts Q1860-90918

Optional 500-sheet feeder

Covers and base frame

1 Use the flat-blade screwdriver to press down four locking tabs (callout 1) and then remove

the right and left auxiliary covers (callout 2).

2 Use the flat-blade screwdriver to press down the two locking tabs (callout 3) on the top of the

front cover (callout 4) and then remove the front cover by reaching under the lip of the cover

and pulling it toward you, one end at a time.

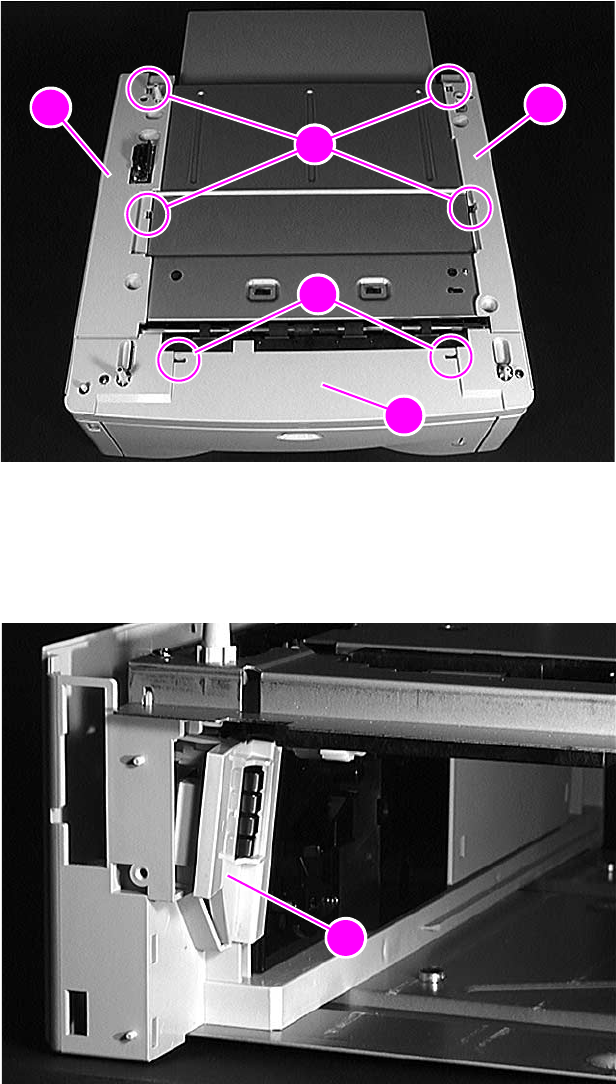

Figure 111. 500-sheet feeder removal (1 of 2, top view)

3 Remove the paper-size sensing springs (callout 5) by disengaging the locking tabs from the

left frame assembly.

Figure 112. Paper-size spring assembly removal

2

2

2

2

1

4

2

2

2

3

2

5
