Q1860-90918 6 Removing and replacing parts 171
Control PCA
1 Place the optional 250-sheet feeder face-up on a work surface and remove the 250-sheet
tray.
2 Press the two tabs (callout 1) on the right side top cover and lift off the cover.
3 Press the two tabs (callout 2) on the left side top cover and lift off the cover.
4 Remove two screws (callout 3) from the front top cover and lift off the cover.

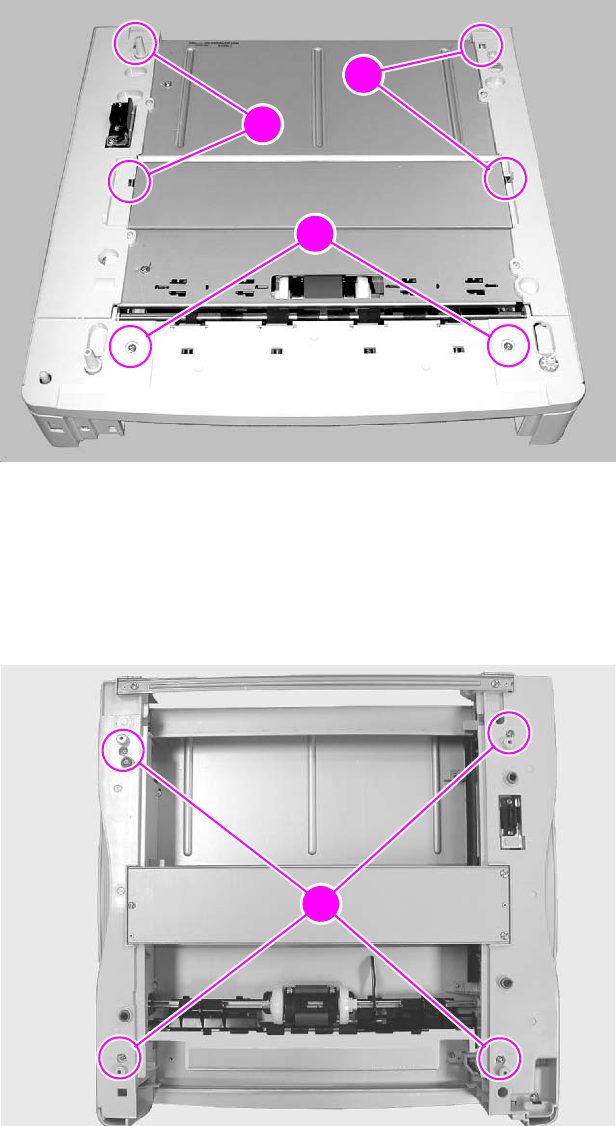

Figure 106. Optional 250-sheet feeder control PCA removal (1 of 3)
5 Turn the feeder upside-down.
6 Remove the four screws (callout 4) that secure the frame to the sheet metal, and then lift the
frame off of the feeder assembly.
Figure 107. Optional 250-sheet feeder control PCA removal (2 of 3)
2
2
2
3
2
1
2
4
