138 Removing and replacing parts Q1860-90918
Fan
1 Remove the top cover (see page 115) and the right side cover (page 123).
2 Disconnect the cable (callout 1) that supplies power to the fan.
3 Remove the two self-tapping screws (callout 2) that secure the fan to the chassis.
4 Remove the fan from the chassis.

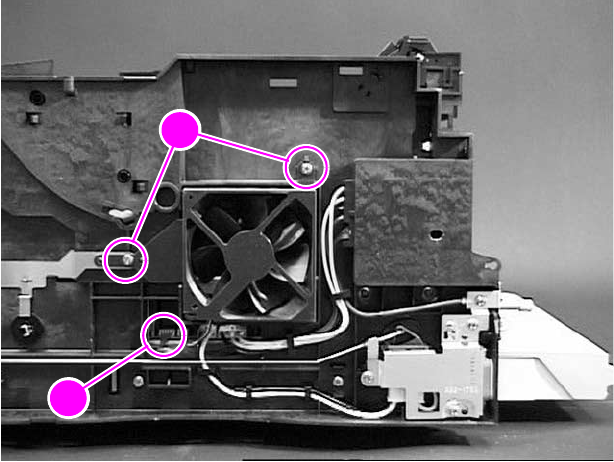

Figure 67. Fan removal (right side of printer)
