10 Installation
S
ection 2: Installation 389VP Instruction Manual
January 2013 PN 51-389VP
F

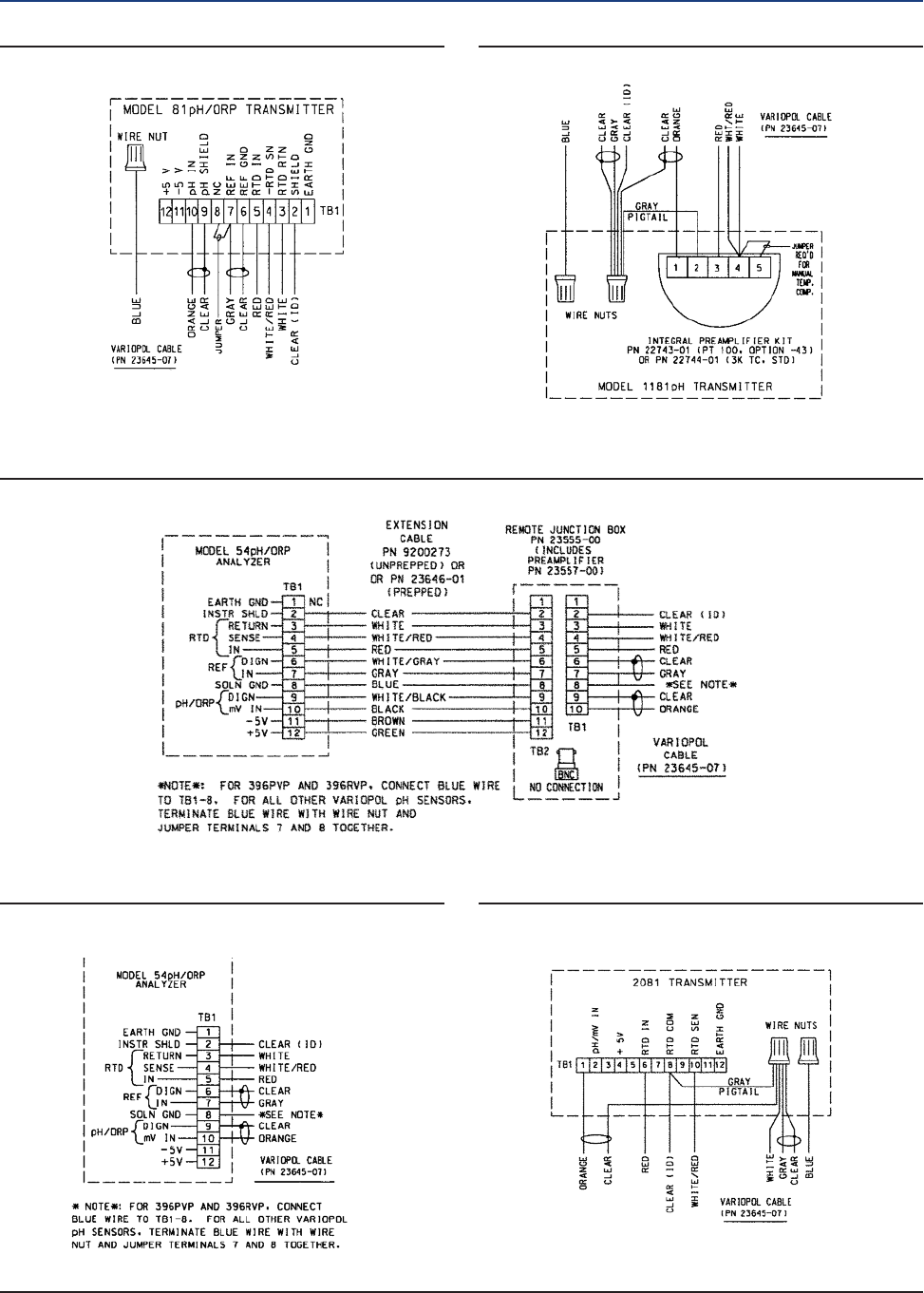

IGURE 2-6. VP6 81 Wiring
F
IGURE 2-7. VP6 1181 Wiring
FIGURE 2-9. VP6 54 Wiring FIGURE 2-10. VP6 2081 Wiring
FIGURE 2-8. VP6 54 Wiring through Remote Junction Box
