for the code to go on-line again. CHR$( 19) is the code to turn
SR-IO/l5 off-line; CHR$( 17) returns SR-lo/15 to on-line status.
n Printing to the bottom of the sheet
Sometimes when you are using sprocket paper you may want
to print near the bottom of the last sheet. The paper-out detector
usually stops SR-lo/15 when you are about 3 inches from the
bottom of the sheet. This is to notify you if you are running out
of continuous paper.
SR-lo/15 has the ability to print right to the bottom of the
sheet. You can disable the paper-out detector so that it doesn’t
stop the printer. This will allow you to print to the end of the
sheet, and even beyond if you are not careful. The codes to control
the paper-out detector, along with the other codes that we have
just learned are in the following table.

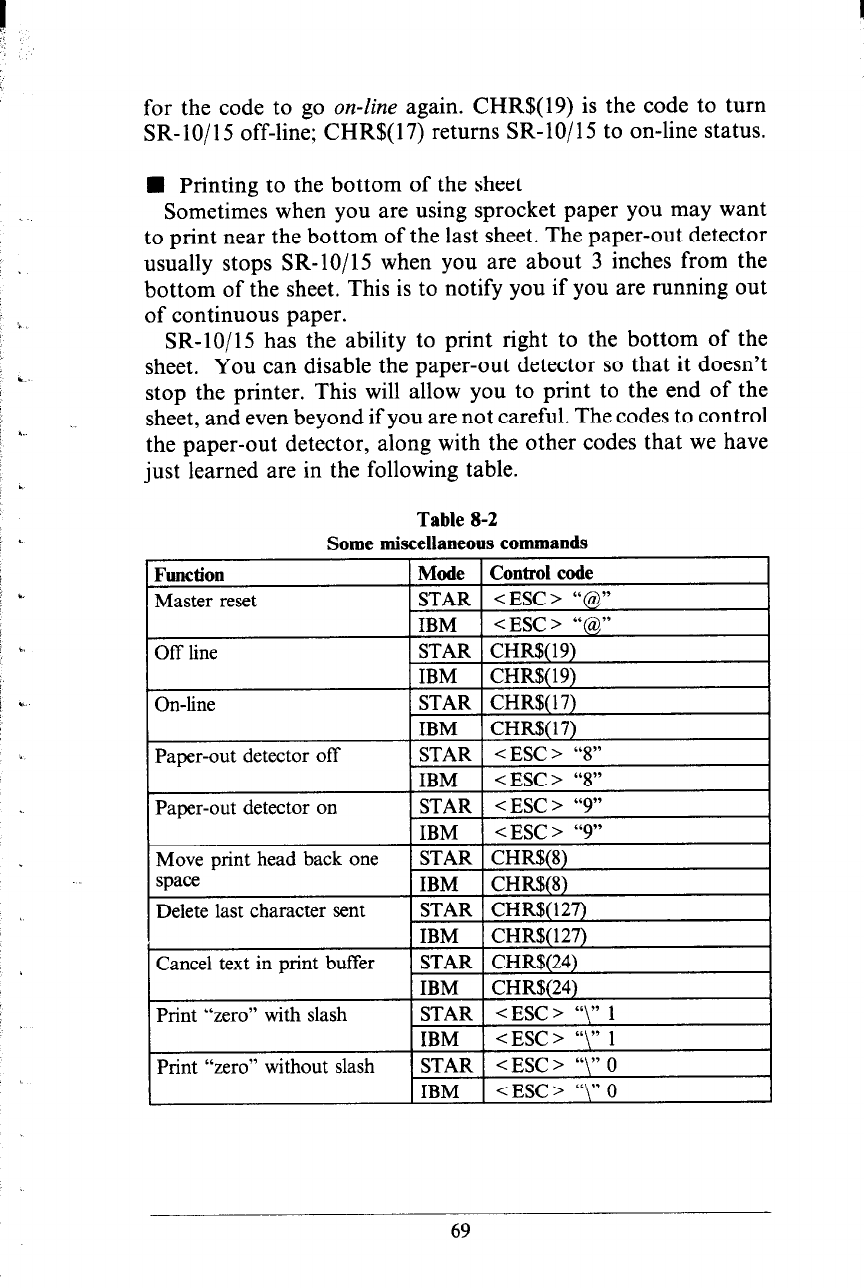

Table 8-2
Some miscellaneous commands
Function
1 Mode 1 Control code
Master reset
Off line
STAR
< ESC > “@,”
IBM
< ESC > “@,”
STAR CHR$( 19)
I
1 IBM
1 CHR%( 19)
On-line
Paper-out detector off
STAR CHR$(17)
IBM CHR$(17)
STAR <ESC > “8”
IBM
< ESC > “8”
Paper-out detector on
Move print head back one
STAR <ESC> “9”
IBM
< ESC > “9”
STAR CHR$(S)
Print “zero” with slash
Print “zero” without slash
STAR <ESC> “\,, 1
IBM
<ESC> “\,’ 1
STAR <ESC > “\,’ 0
69
