Guide pin
Guide pin

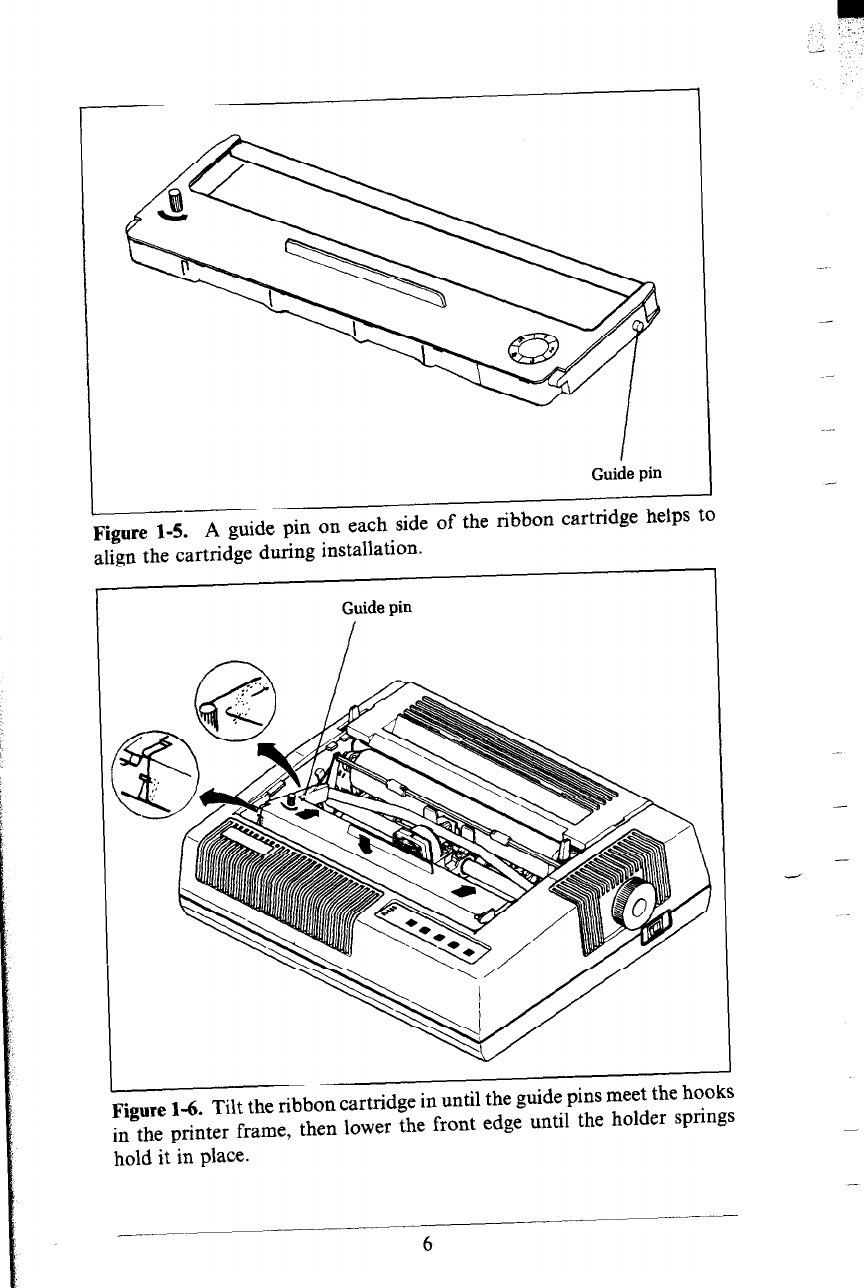

Figure l-5.
A guide pin on each side of the ribbon cartridge helps to
align the cartridge during installation.
Figure l-6. Tilt the ribbon cartridge in until the guide pins meet the hooks
in the printer frame, then lower the front edge until the holder springs
hold it-in place.
-
-
