TL-WA830RE 300Mbps Wireless N Range Extender User Guide
2) Access Point: This mode allows wireless stations to access this device.

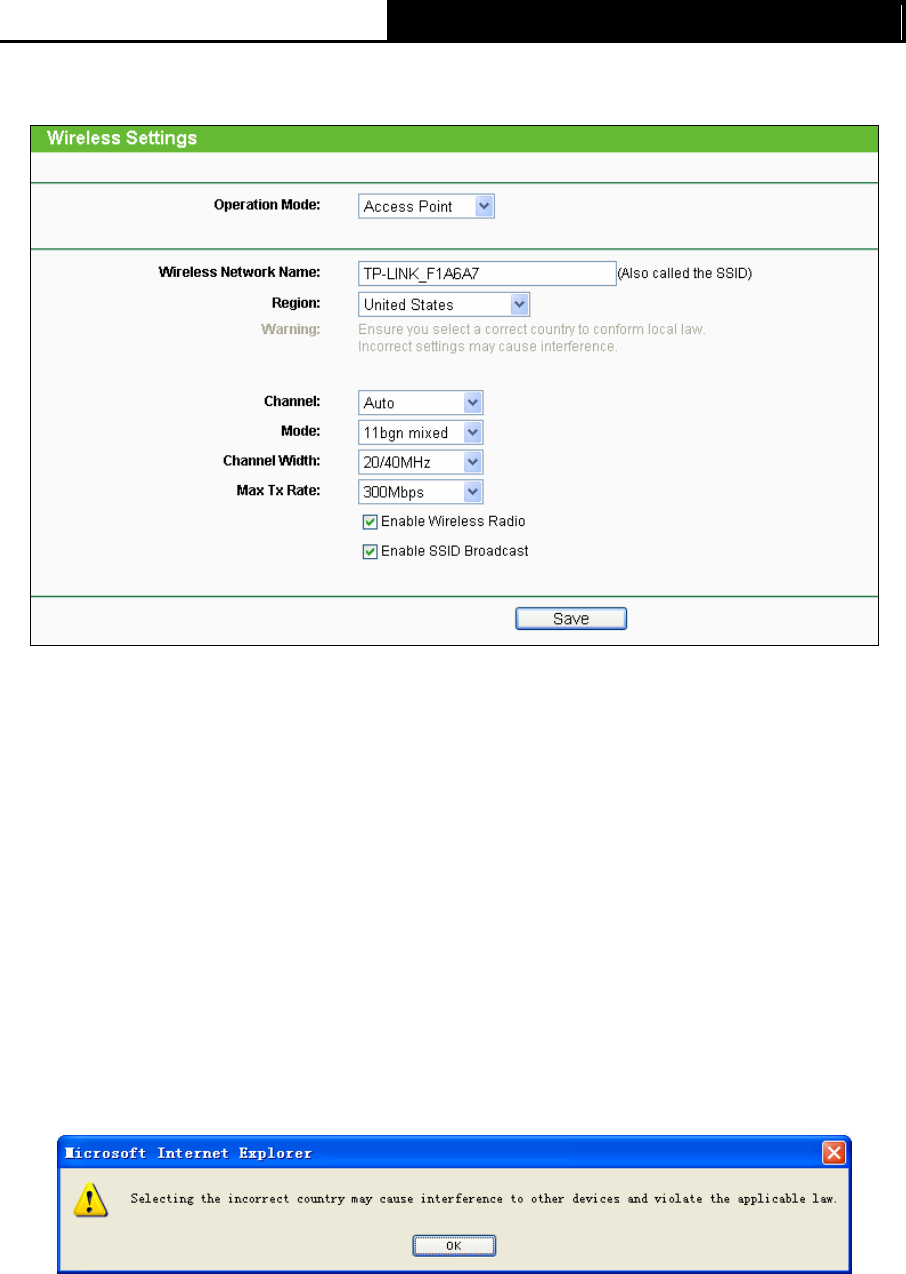

Figure 4-13 Wireless Settings in Access Point mode
¾ Operation Mode - Two Operation Modes are supported, including: Access Point and Range
Extender.
¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32
characters and make sure all wireless points in the wireless network with the same SSID. The
default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last unique six characters of each
device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as
test.
¾ Region - Specifies the region where the wireless function of the AP can be used. Select your
region from the drop-down list. If your country or region is not listed, please contact your local
government agency for assistance.
) Note:
The default region is United States. When you select your local region from the pull-down list,
the dialog shown in Figure appears below. Click OK.
) Note:
Restricted by local law regulations, version for North America does not have region selection
option.
¾ Channel - Determines the operating frequency to be used. It is not necessary to change the
wireless channel unless you notice interference problems with another nearby access point.
26
