TL-WA830RE 300Mbps Wireless N Range Extender User Guide
)
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
2. After successfully logging in, click the Quick Setup menu to quickly configure your AP and the
following figure will display. Click Next to continue.

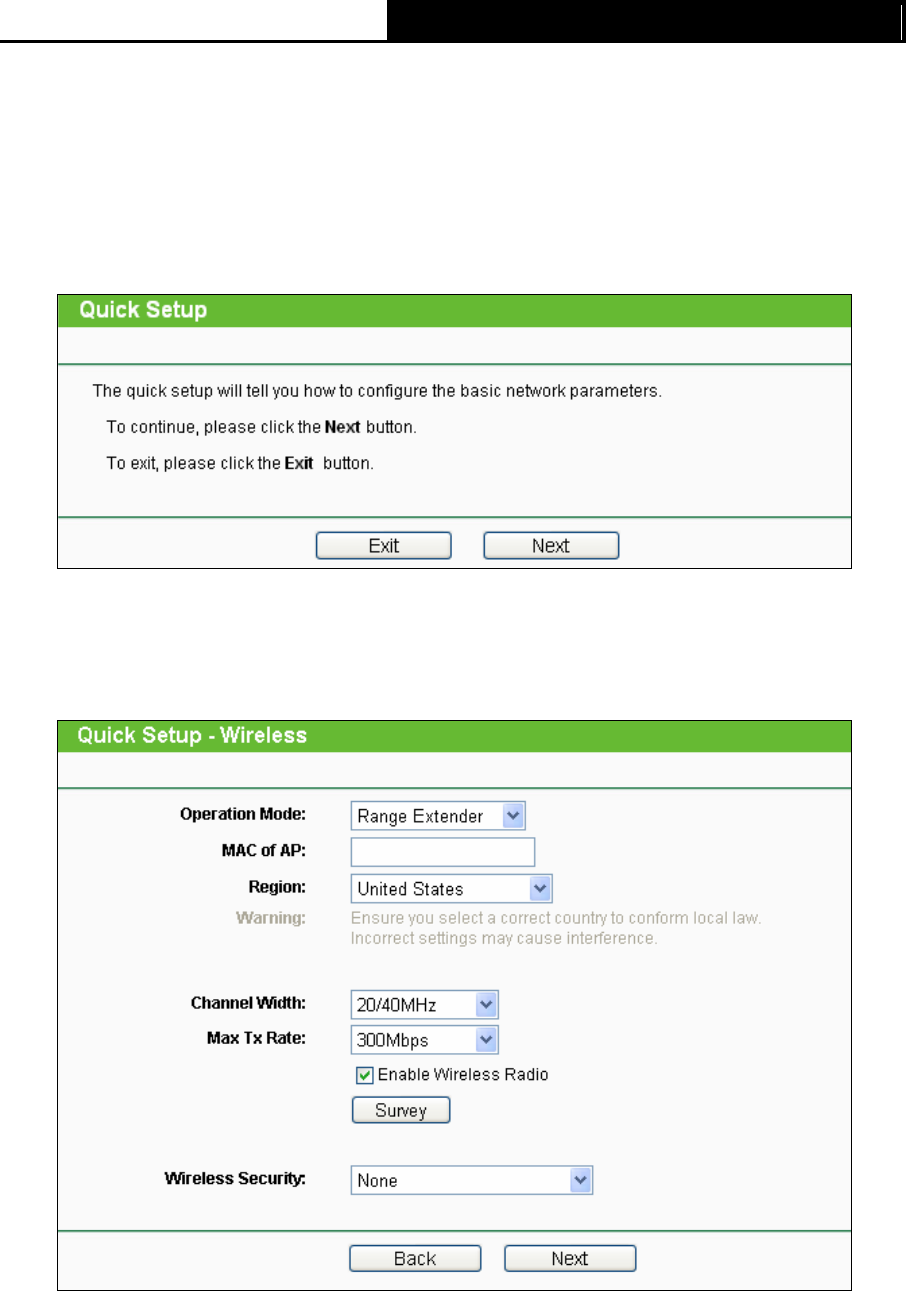

Figure 3-9 Quick Setup
3. And then Wireless page will appear shown in Figure 3-10. There are two Operation Modes,
including Range Extender and Access Point. The available setting options are different in
different operation modes, and they are explained below.
Figure 3-10 Quick Setup - Wireless
A. When you choose Range Extender, take the following steps:
1) Click Survey on the Wireless page shown as Figure 3-10 , and then AP List page will
appear, shown in Figure 3-11.
10
