-98-
ESP Encryption Key-Out:
Specify the outbound ESP Encryption Key manually if ESP
protocol is used in the corresponding IPsec Proposal. The
outbound key here must match the inbound ESP encryption key
at the other end of the tunnel, and vice versa.
List of IPsec Policy IPsec
In this table, you can view the information of IPsec policies and edit them by the action buttons.
The first entry in Figure 3-64 indicates: this is an IPsec tunnel, the local sub
net is 192.168.0.0/24,
the remote subnet is 192.168.3.0/24 and this tunnel is using IKE automatic negotiation. It is
enabled.
Tips:
● 0.0.0.0.0/32 indicates all IP addresses.
● Refer to Appendix Troubleshooting 5 for the configuration of subnet.
3.6.2.2 IPsec Proposal
On this page, you can define and edit the IPsec proposal.
Choose the menu VPN→IPsec→IPsec Proposal to load the following page.

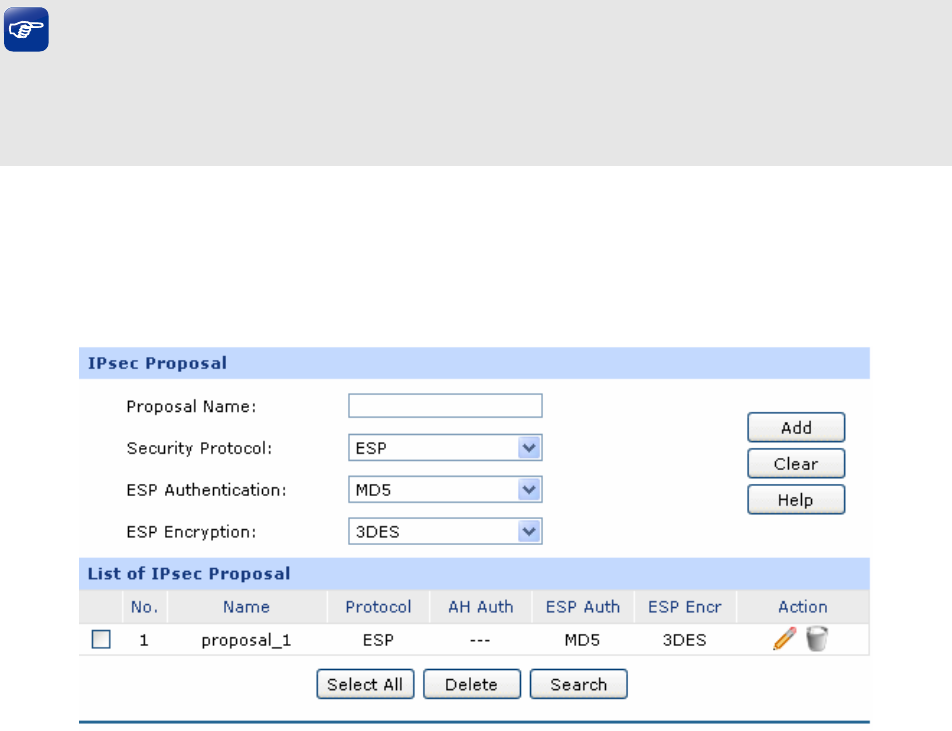

Figure 3-65 IPsec Proposal
The following items are displayed on this screen:
IPsec Proposal
Proposal Name:
Specify a unique name to the IPsec Proposal for identification and
management purposes. The IPsec proposal can be applied to IPsec
policy.
