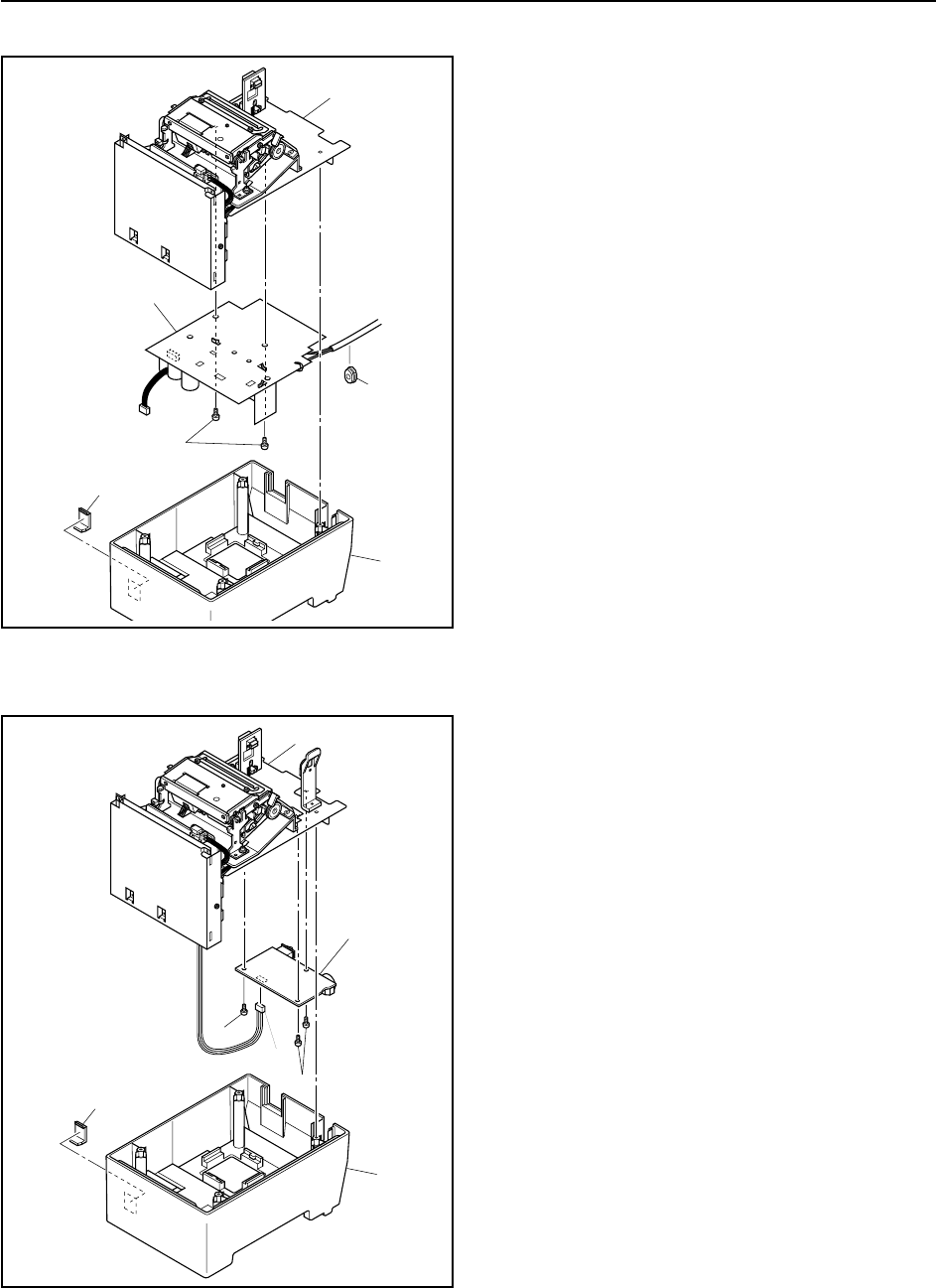

5. Power Unit (TSP200-120/230)
(1) Remove the upper case unit. (See 1. above.)
(2) Remove the connector cover 1.
(3) Remove the main chassis unit 5 from the lower
casing unit 2.
(4) Remove:
Two screws 3
Cord bushing 4
Connector
Power unit 6 from main chassis 5
1
3
4
3
6
5
2
Power Unit (TSP200-24)
(1) Remove the upper case unit. (See 1. above.)
(2) Remove the connector cover 1.
(3) Remove the main chassis unit 5 from the lower
casing unit 2.
(4) Remove:
Three screws 3
Connector 4
Power unit 6 from main chassis 5
