5. Remove one flat ribbon cable (callout 6), disconnect three connectors (callout 7), and remove one
grounding screw and wire (callout 8).
8
6
7

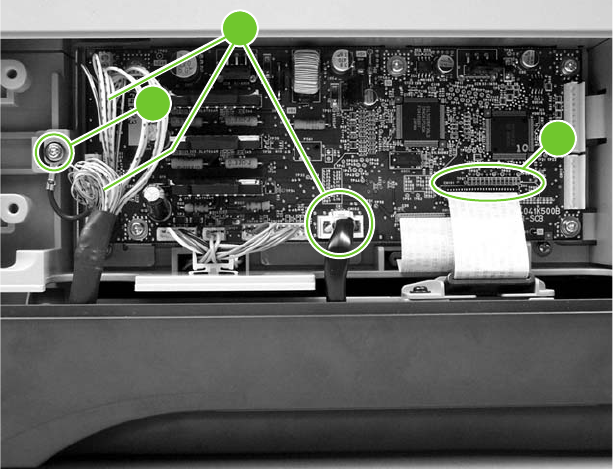

Figure 5-81 Removing the flatbed scanner assembly (4 of 4)
6. Lift the flatbed scanner assembly off of the base.
98 Chapter 5 Removal and replacement ENWW
