Printer Pick Roller Kit - Replacing the Tray Pick Rollers
4-40 Ordering and Replacing Consumables
4. Install the new upper pick roller assembly over the shaft. See Figure 4-51.

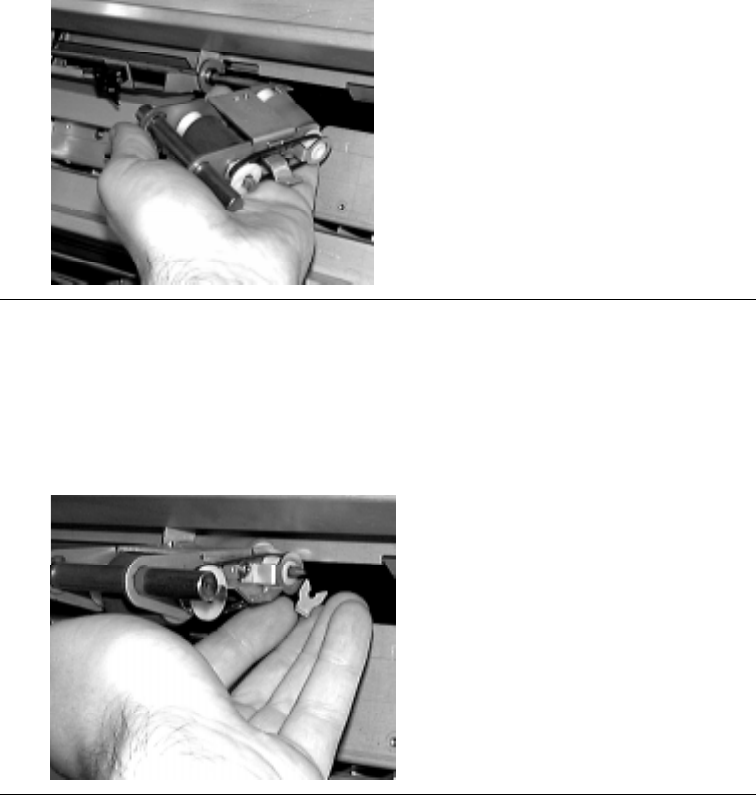

Figure 4-51 Installing Upper Roller Assembly
5. Push the upper roller assembly all the way onto the shaft. You may have to jiggle the
assembly a little as you push it to seat it correctly.
6. Snap the blue plastic clip into place. It fits over a groove on the end of the shaft to secure
the upper roller assembly. If you don’t see this groove, the assembly may not be
completely seated all the way onto the shaft. See Figure 4-52.
Figure 4-52 Installing Upper Roller Clip
