2-3
Preparing and Installing the 9A426-02 Module

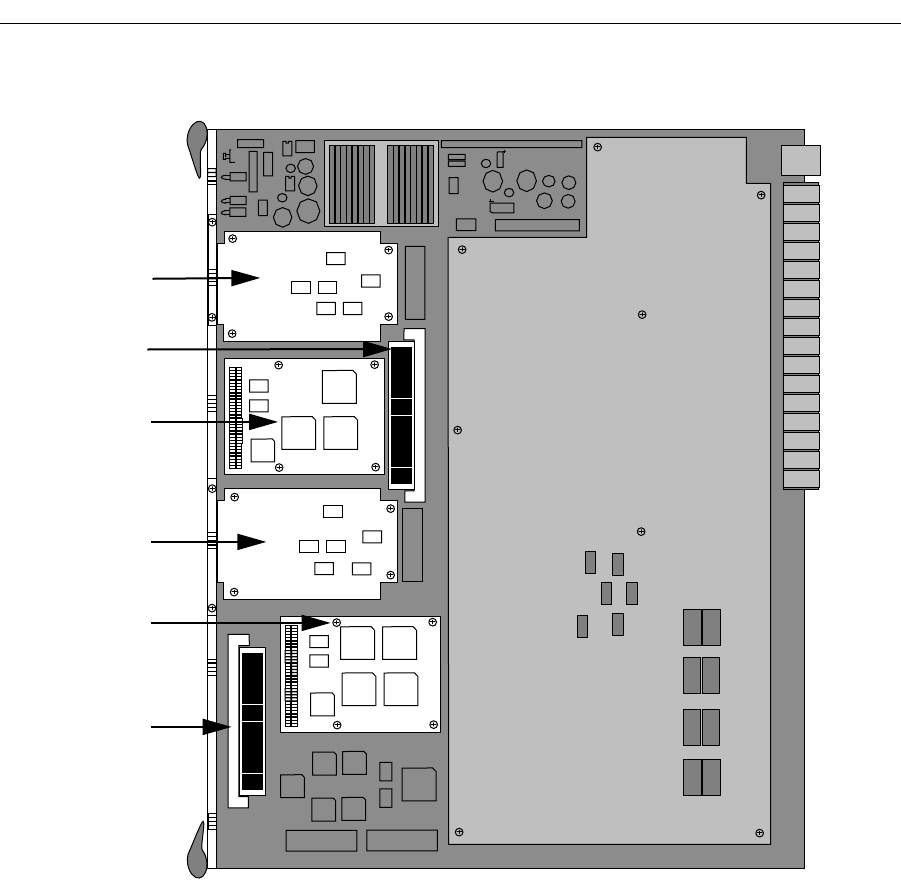

Figure 2-2. User Accessible Components on the 9A426-02 Module’s motherboard
Look-Up Engines
The 9A426-02 Module is shipped with two look-up engines (one for each front
panel port). These components are located at the front section of the module as
shown in Figure 2-2. Each Look-Up Engine stores MAC Address/Virtual Channel
Pairings.
To increase the capacity of a front panel portÕs Look-Up Engine, install the Look-
Up Engine Upgrade Kit (LUE-UGK). To increase the capacity of the moduleÕs
second front panel port, install an additional upgrade kit. Installation instructions
are included in each upgrade kit.
APIM
Look-Up
Engine
Look-Up
Engine
APIM
SRAM
SIMM
SRAM
SIMM
