TL-WR710N WiFi Pocket Router/AP/TV Adapter/Repeater
- 16 -
If you select Static IP manually, the next screen will appear as shown in Figure 3-9. This type of
connection uses a permanent, fixed (static) IP address that your ISP assigned. In this type, you
should fill in the IP address, Subnet Mask, Default Gateway, and DNS IP address manually, which
are specified by your ISP. Then click Next and proceed to Figure 3-12.

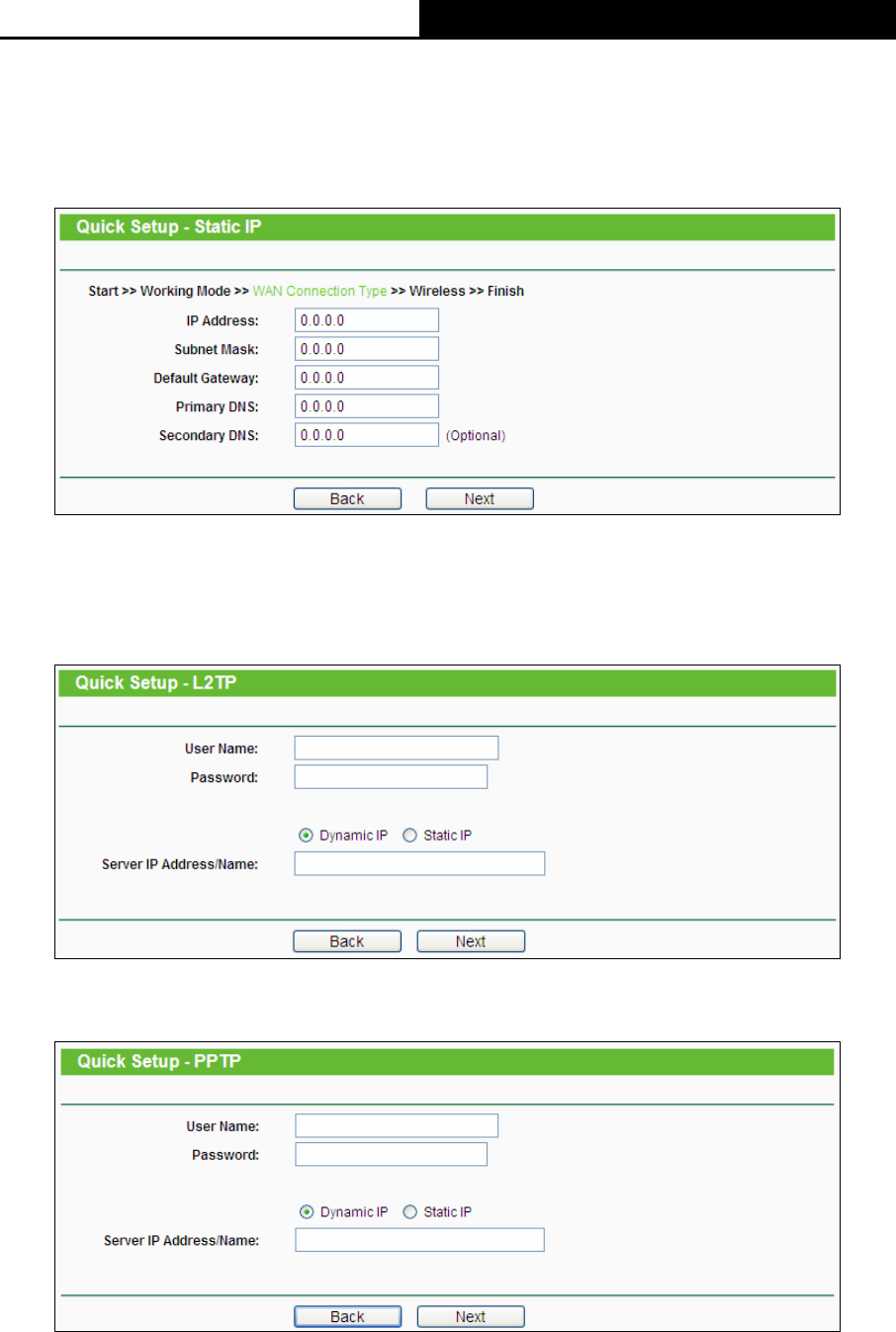

Figure 3-9 Quick Setup - Static IP
If you select L2TP/Russian L2TP and PPTP/Russian PPTP manually, the next screen will
appear as shown in Figure 3-10 and Figure 3-11.
Figure 3-10 Quick Setup - L2TP/Russian L2TP
Figure 3-11 Quick Setup - PPTP/Russian PPTP
¾ User Name/Password - Enter the User Name and Password provided by your ISP.
