TL-WA730RE 150Mbps Wireless N Range Extender User Guide

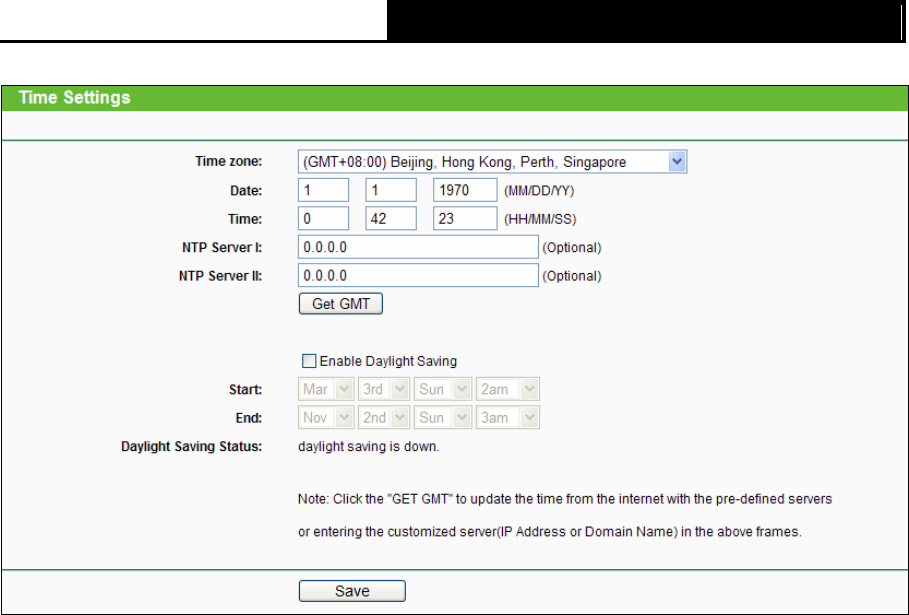

Figure 4-27 Time settings
¾ Time Zone - Select your local time zone from this pull down list.
¾ To set time manually:
1. Select your local time zone.
2. Enter the Date in Month/Day/Year format.
3. Enter the Time in Hour/Minute/Second format.
4. Click Save.
¾ For automatic time synchronization:
1. Enter the address of the NTP Server Prior.
2. Click the Get GMT button to get GMT from the Internet.
)
Note:
1. This setting will be used for some time-based functions such as firewall functions. These
time-dependant functions will not work if time is not set. So, it is important to specify time
settings as soon as you successfully login to the Device.
2. The time will be lost if the Device is turned off.
3. The Device will automatically obtain GMT from the Internet if it is configured accordingly.
4.9.3 Diagnostic
Selecting System Tools > Diagnostic allow you to check the connections of your network
components on the screen shown in Figure 4-28.
40
