14
1. If you have external devices such as sensors and alarms, make the connections
from general I/O terminal block.
2. Use Category 5 or equivalent Cable to connect the Network Camera to a
network switch.
Use Category 5 or equivalent Cross Cable when Network Camera is directly
connected to a PC.
3. Connect the supplied AC adapter.
Power input
Connect the power adapter of the supplied AC adapter, 24V AC UL Listed Class2
power supply.
The power supply of this camera is 12V DC or 24V AC.
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Ethernet hub
(not supplied)
1: 12 VDC Output
2: Digital output
3: Digital input
4: Ground
5: Power in 24 VAC
6: Power in 24 VAC
7: RS485+
8: RS485-
Network Deployment

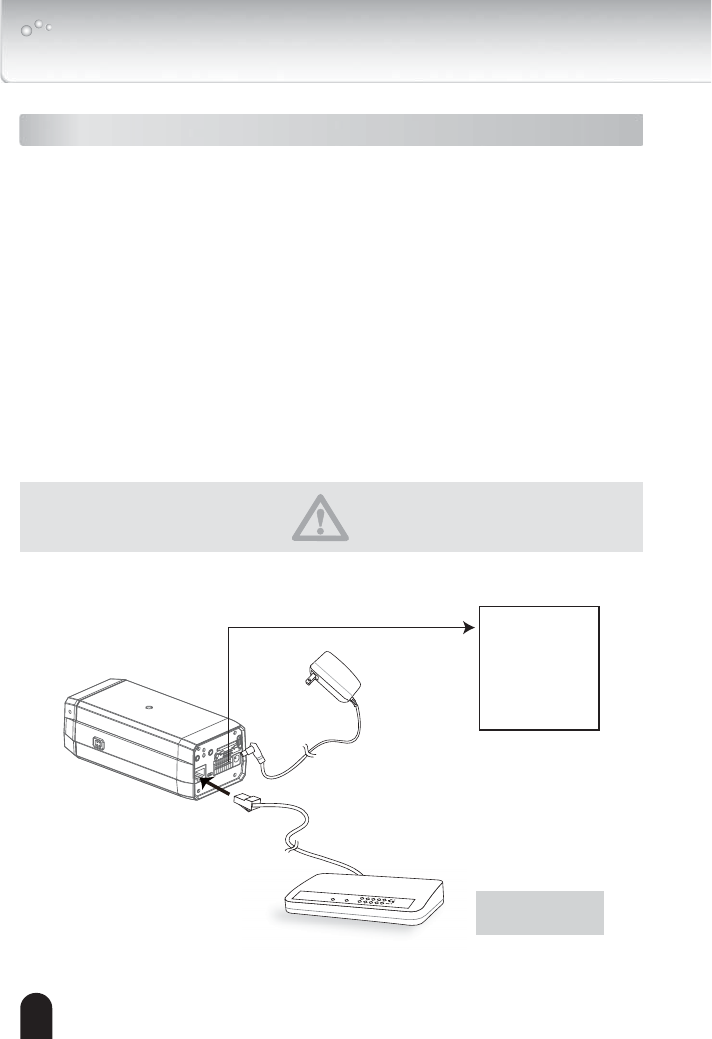

General Connection (without PoE)
Connect the AC adapter jack to the Network Camera before plugging in to the
power socket. This will reduce the risk of accidental electric shock.
