NCR RealScan 7882 Installation and Owner Guide
09/02 497-0419630 Release F
Checkstand Cutout
1.
Put the RealScan 7882 into the hole in the checkstand. Diagrams in NCR
RealScan 7882 Specifications show the various dimensions of the hole.
2.

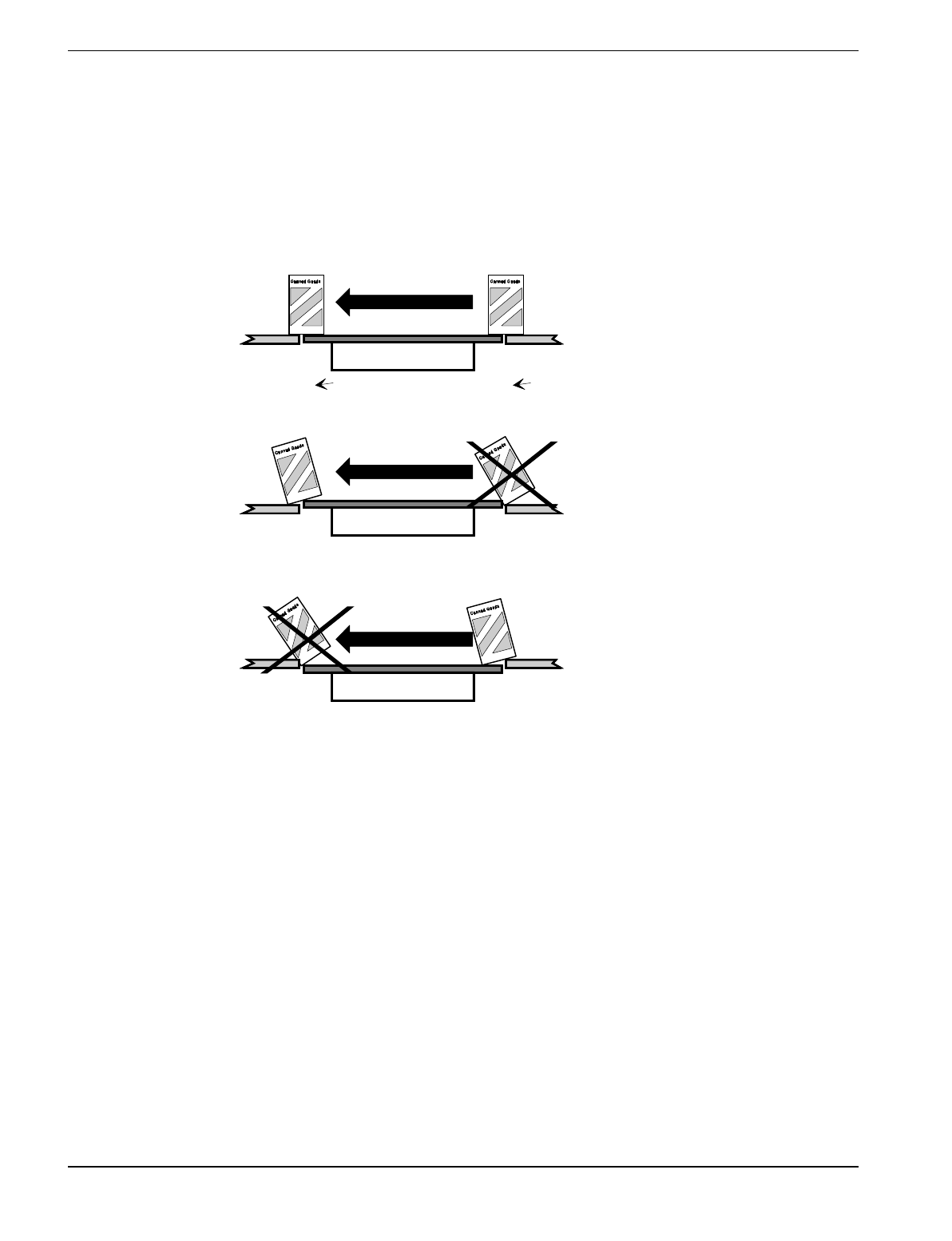

Align the RealScan 7882 to the Checkstand. The leading edge of the Top Plate must
be flush or up to 1/16 in. (0.15 cm) below the top of the checkstand. The trailing
edge of the Top Plate must be flush or up to 1/16 in. (0.15 cm) above the top of the
checkstand.
Checkpoint Cable
If you are installing a RealScan 7882 Scanner with the Checkpoint feature on a Vertical
Mounting Bracket, route the Checkpoint Cable along side the Interface Cable.
Note: If the installation includes the Checkpoint feature, a representative from
Checkpoint must connect the Checkpoint Cable to the Checkpoint equipment after you
install the RealScan 7882.
Cable Clamps
The RealScan 7882 is supplied with two Cable Clamps (006-0687102). Install these
clamps under the checkstand as needed to support the cables and keep them out of the
operator’s way.
