5

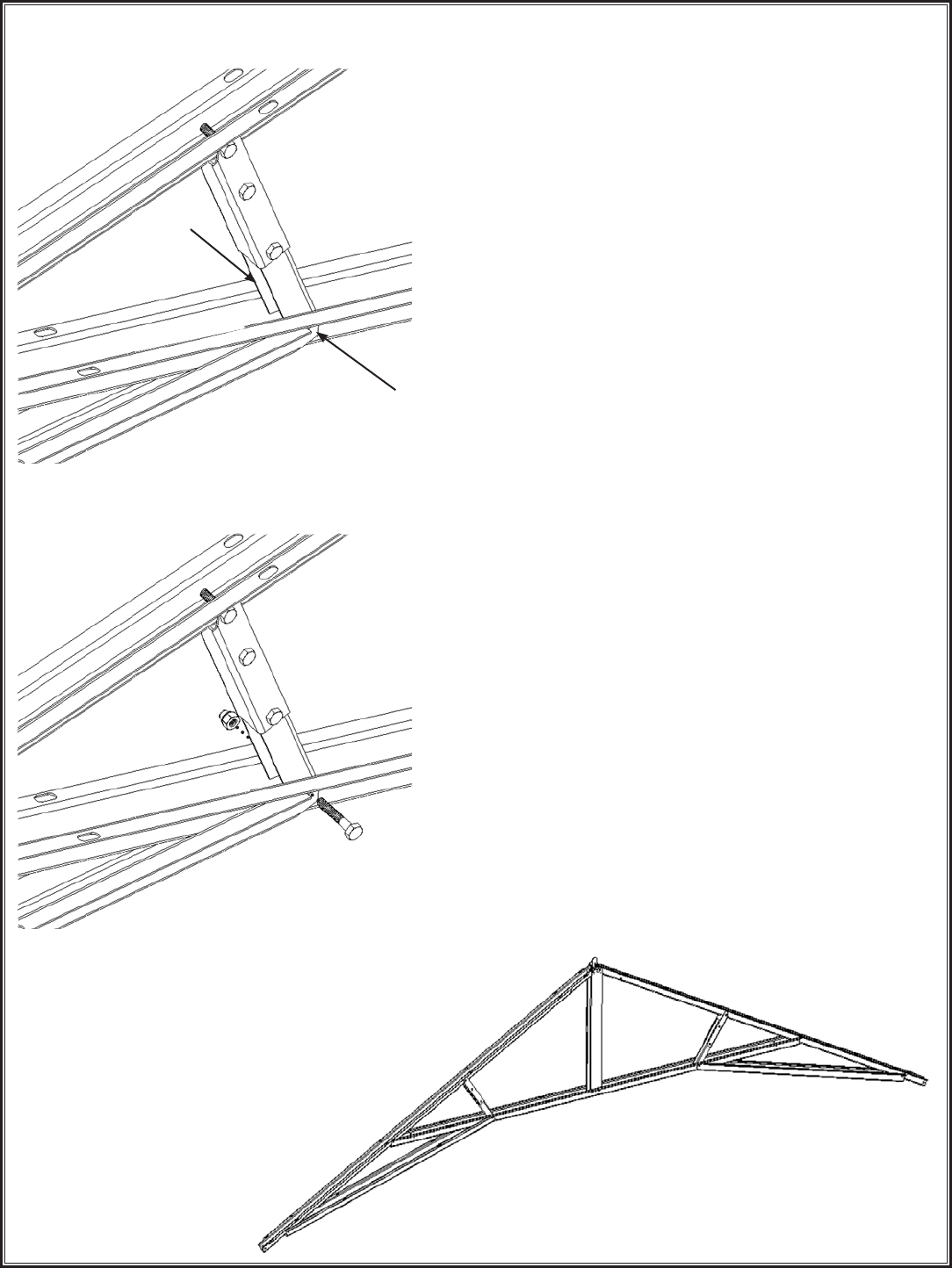

1.6: Mark the location of the hole on each side of the Truss Brace. Drill a hole at each spot, with a 5/16” Drill Bit.
1.7: Loosely secure the Long Truss Support (A) and the Truss Bracket Assembly to the Truss Brace.
When nished, all Trusses will look like this.
1.8: Repeat Steps 1.3 to 1.7 for the other side of the Truss.
1.9: Tighten all hardware.
Truss Brace
Mark the location of the hole
on each side of the Truss
Brace.
1.10: Repeat Steps 1.3 to 1.9 for all Trusses.
Truss Brace
C
HC
HB
