INSTALLING YOUR NEW RECORDER

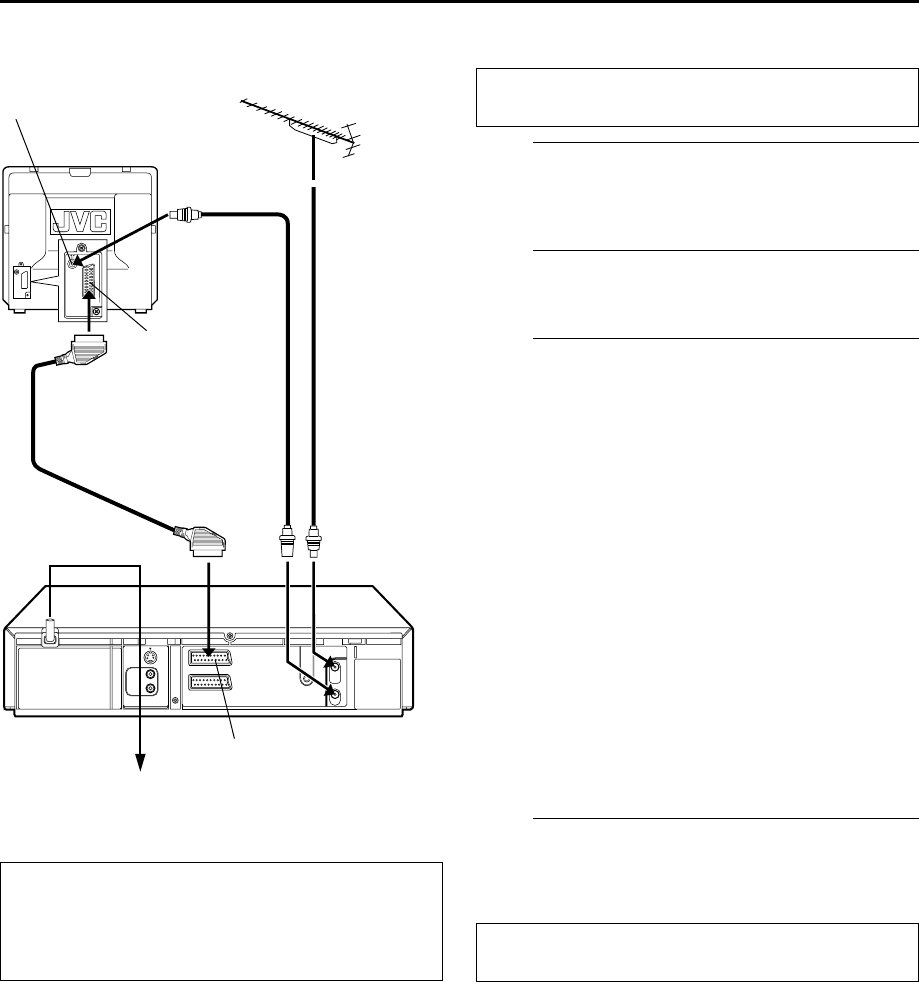

Basic Connections
It’s essential that your video recorder be properly
connected.
A
Check the contents.
Make sure the package contains all of the accessories
listed in “SPECIFICATIONS” on page 62.
B
Situate the recorder.
Place the recorder on a stable, horizontal surface.
C
Connect the recorder to TV.
The connection method you use depends on the type of
TV you have.
RF Connection
8To connect to a TV with NO AV input connectors . . .
A
Disconnect the TV aerial cable from the TV.
B
Connect the TV aerial cable to the ANT. IN connector
on the rear panel of the recorder.
C
Connect the provided RF cable between the RF OUT
connector on the rear panel of the recorder and the
TV’s aerial connector.
AV Connection
8To connect to a TV with AV input connectors . . .
A
Connect the aerial, recorder and TV as per “RF
Connection”.
B
Connect an optional 21-pin SCART cable between the
AV1 (L-1) IN/OUT connector on the rear panel of the
recorder and the TV’s 21-pin SCART connector.
D
Connect the recorder to mains.
Plug the end of the mains power cord into a mains outlet.
Make AV connection if your TV has a 21-pin AV input
connector (SCART) in order to reduce the possibility of
interference. With AV connection, you can enjoy
stereo playback of video tapes if you are using a stereo
TV.
Aerial connector
Back of TV
21-pin SCART
connector
TV aerial cable
RF cable
(provided)
21-pin SCART
cable
(not provided)
Mains power cord
Mains outlet
Back of recorder
AV1 (L-1) IN/OUT
THESE STEPS MUST BE COMPLETED BEFORE ANY
VIDEO OPERATION CAN BE PERFORMED.
After the connection is completed, perform “Auto Set
Up” on page 10.
