EN 13
The Video Capture Docking Station does not receive power from the battery pack installed in
the camcorder or from the AC Power Adapter/Charger attached to the camcorder. Be sure to
connect the AA-V90 AC Power Adapter/Charger (exclusively for the Video Capture Docking
Station) to the DC input jack located on the Video Capture Docking Station.

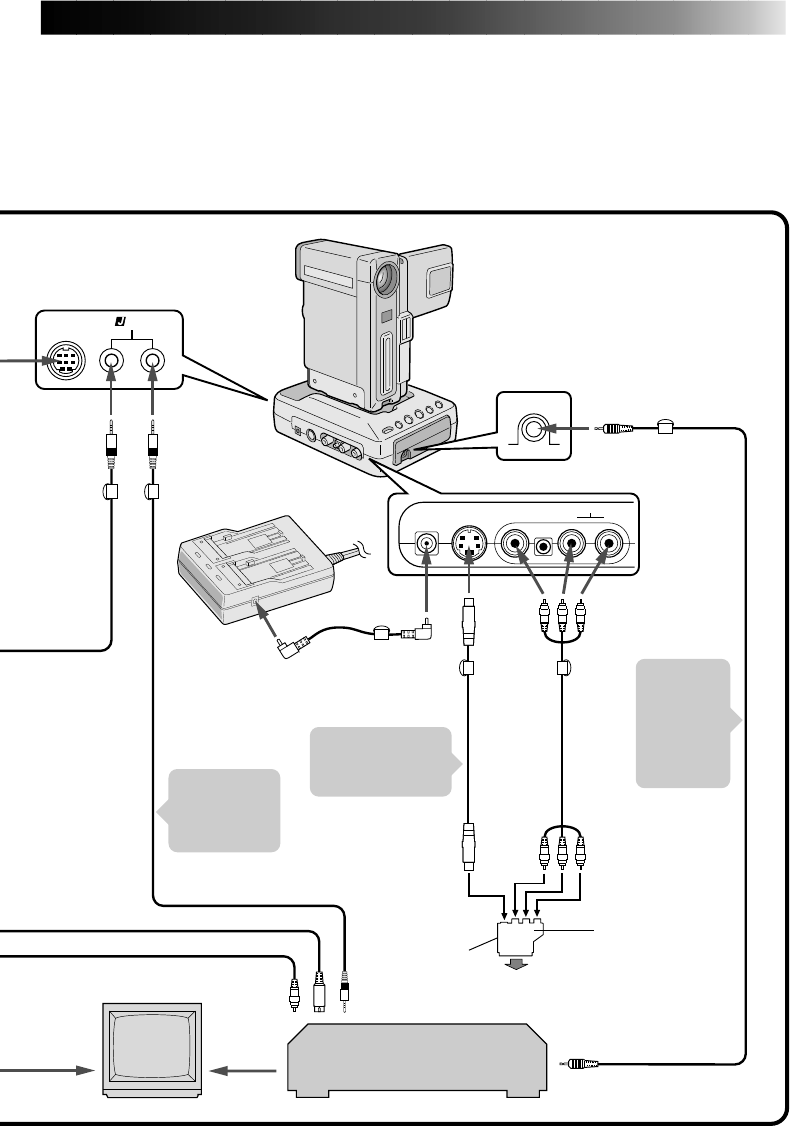

When connecting the Docking Station to a recording deck with neither a JLIP connector nor
a remote pause jack, first make all connections except for the connection to the edit jack on
pg. 12 and 13, then make the connection to the edit jack on pg. 14.
JLIP
JVC Video unit
(Recording deck)
Digital
camcorder
To JLIP
jack
Core
Filter
To DC
output jack
DC cord
Core
Filter
AC
Power
Adapter/
Charger
To JLIP jack
Core Filter
Core
Filter
Connect this if the
video unit has an
S-Video input jack.
To
AUDIO
input
jacks
(L/R)
To S-Video
input jack
Connect this
if the video
unit has a JLIP
connector.
To VIDEO/
AUDIO OUT
jack
Core
Filter
To
VIDEO
input
jack
To remote pause jack
To JLIP jack
To S-Video output jack
To video output jack
JLIP Video Capture
Docking Station
VIDEO OUT
select switch
(Y/C or CVBS)
Connect
to TV
TV
Connect
to TV
Cable adapter
(provided only with
European models)
If your VCR has the
21 pin AV input
connector (SCART),
use the provided
cable adapter.
Connect to AV
jack-equipped
TV or to VCR
3.5 mm
diameter
4-pole cable
(provided)
AUDIO/
VIDEO
cable
S-Video
cable
Make this
connection
when the
recording
deck has
no JLIP
connector.
EDIT
cable
To EDIT jack
Core Filter
To
S-Video
output
jack
