Secure the motor by tightening the 2 screws.
Turn on the power source.
14
15
Test the motor. If the motor does not run, check the plug
connection.
C30
E1
Go to step
on page 17
to attach grille.

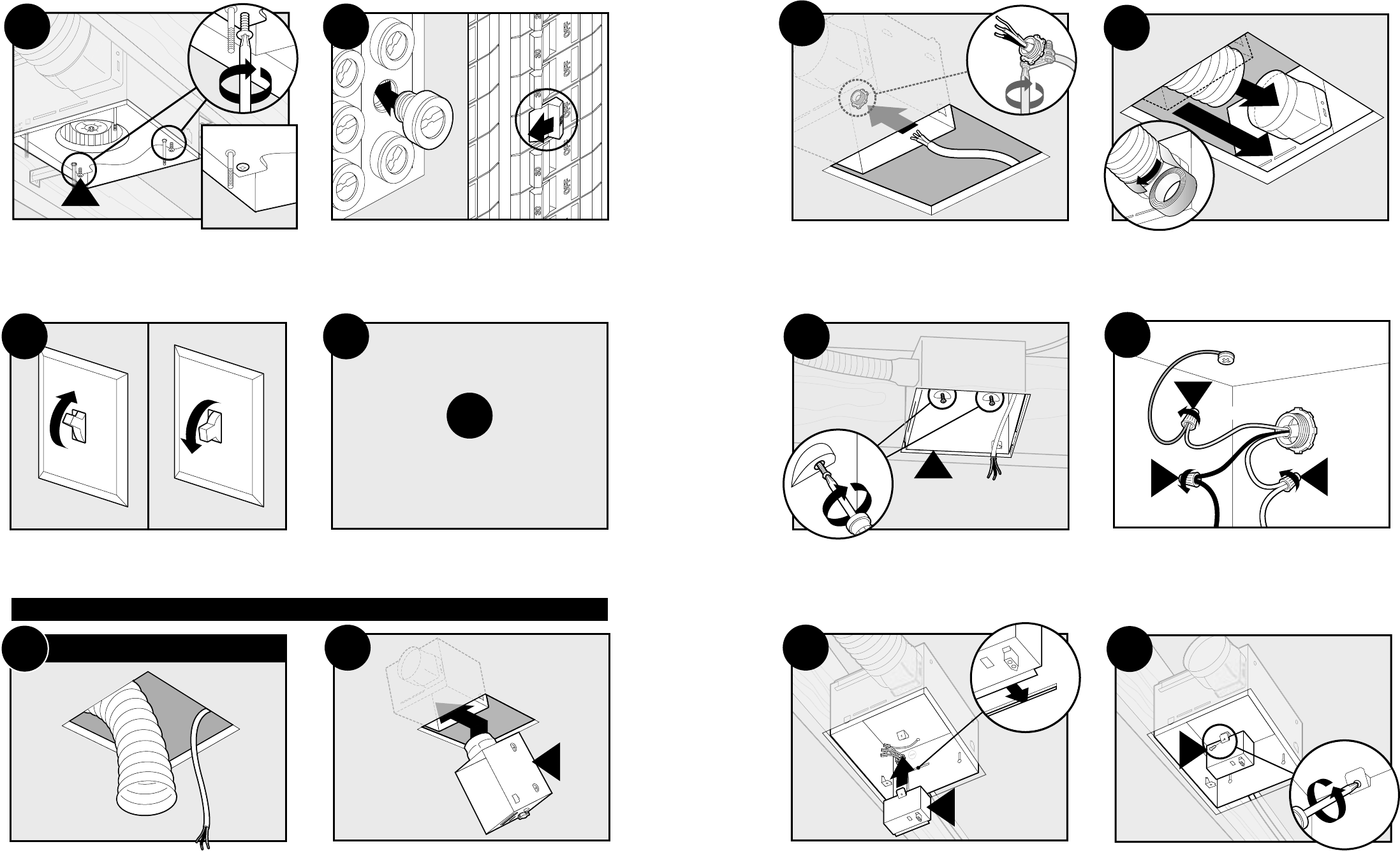

Existing Construction – accessible only from below
Remove an existing fan and check to make sure the
opening is large enough to accommodate the new motor
housing (9” x 9.75”).
Move the housing into position above the ceiling.
Pull wires through strain relief.
Attach existing ducting to duct connector. Tape joints.
If ducting does not fit securely,
an adapter may need to be purchased.
Screw pre-loaded screws into joist or framing.
A
A
A
Green
Black White
Bare Copper
Ground
D16
B
D
Connect wires as shown.
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
Tighten the wiring cover plate screw.
