Removal and Installation
8-35
HP DesignJet 5000 and 5500 Series Printers Service Manual
8. Remove the 5.5 mm nut from the right
hand side of the Printer.
9. Remove the Encoder Strip from the
Printer.
Installation of Encoder Strip
WARNING When Installing the Encoder Strip, make sure it is placed in the
Encoder Sensor on the rear of the Carriage Assembly as shown
below.

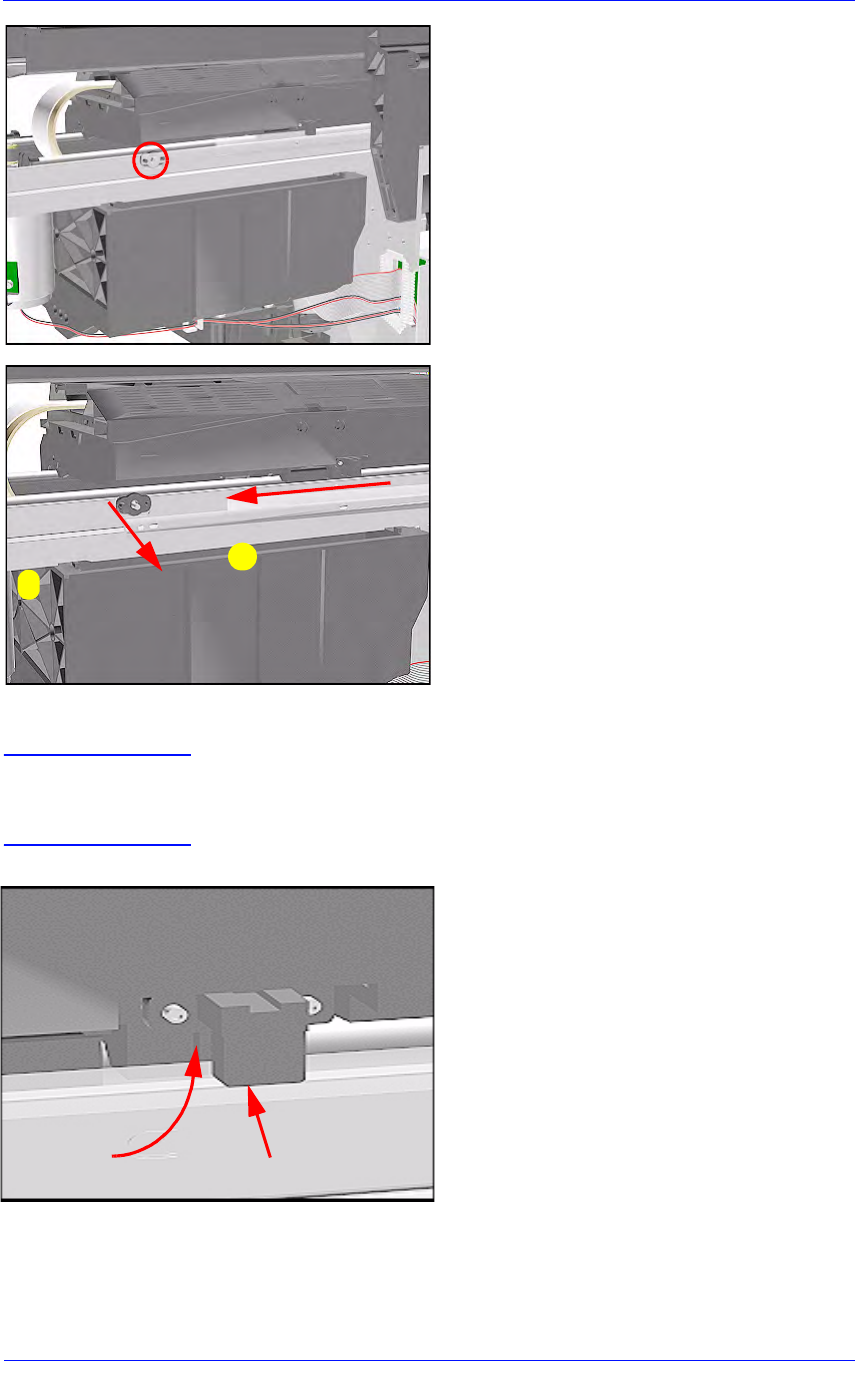

1 Lift off pins
2 Pull strip out
Encoder Senso
r
Insert Encoder Strip
