6Ć8 Removal and Replacement
C4699Ć90000

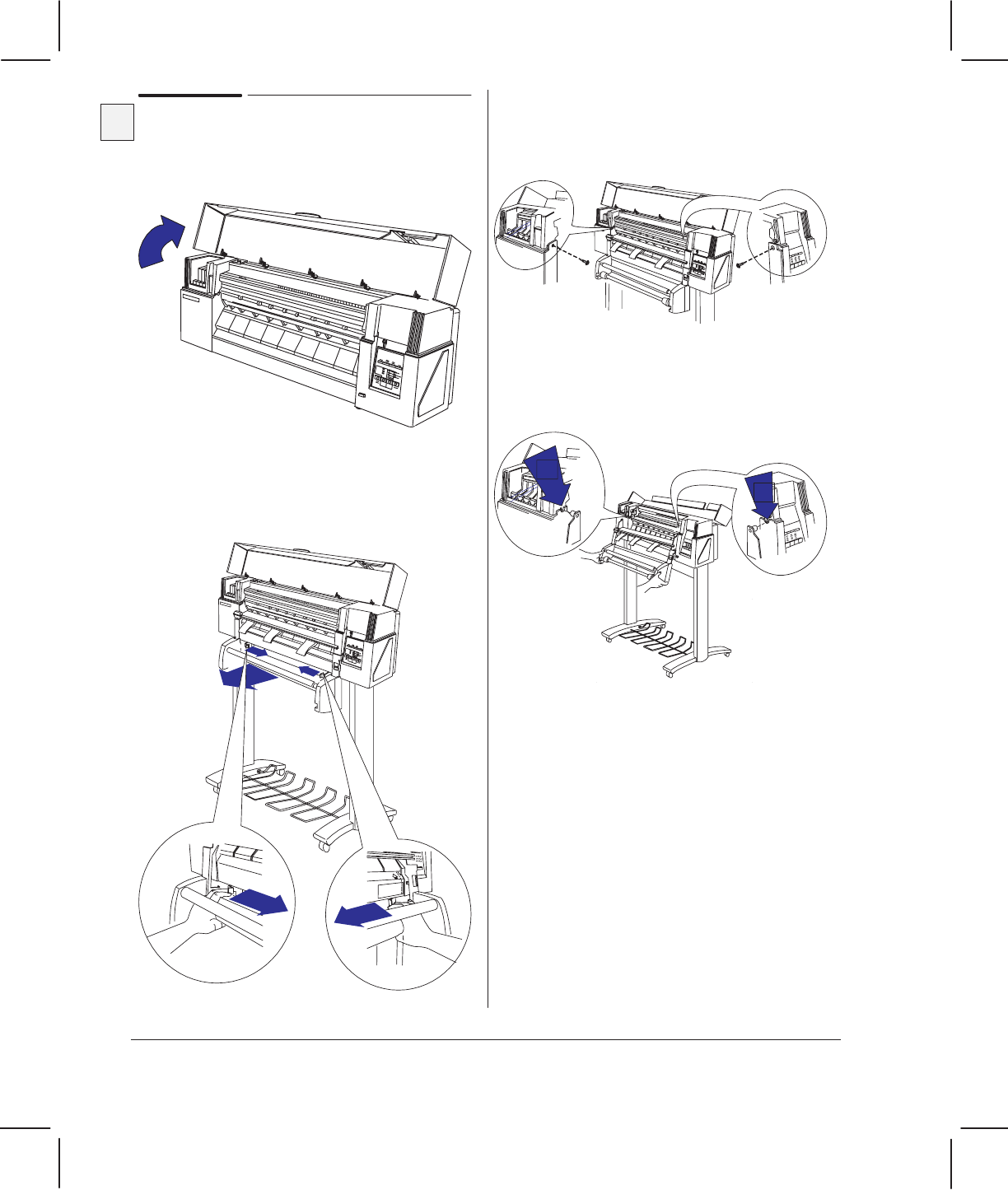

Removing the RollĆfeed Assembly
1 Open the top cover.
2 While pressing the tabs on the locking
bracket toward the center of the plotter,
pull up on the rollĆfeed assembly.
3 Remove the two screws that attach the
rollĆfeed brackets to the plotter.
4 Remove the rollĆfeed assembly from the
plotter by first removing the left mounting
bracket and then the right mounting
bracket.
2
1
