Setting the DIP Switches

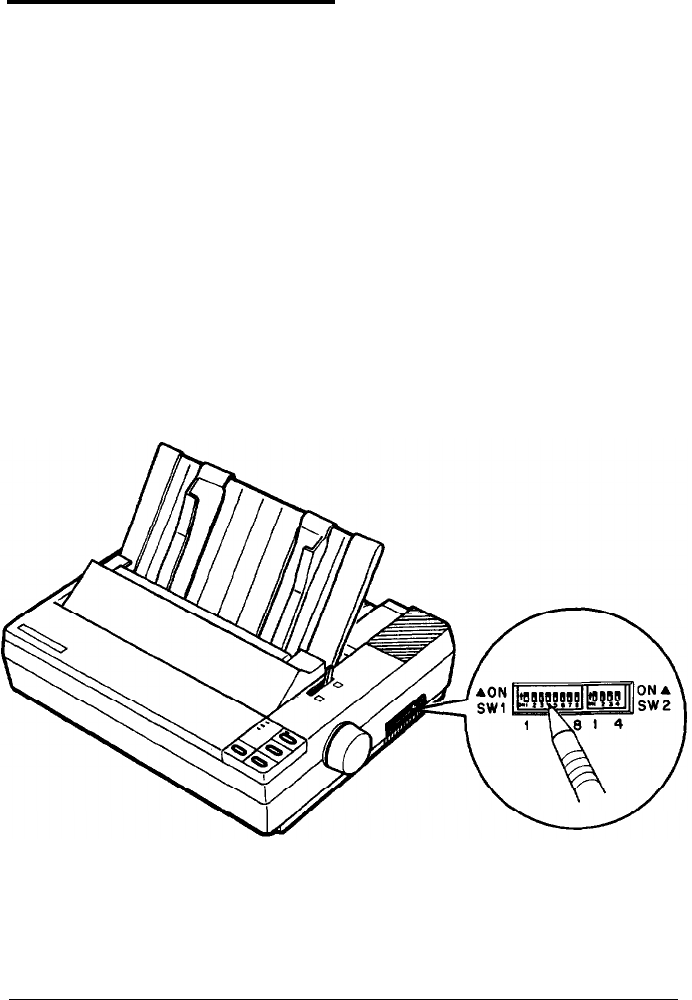

The printer has two sets of DIP switches located on right side of
the printer. By changing the settings of these switches, you can
control various printer features, such as the character set and page
length. The new settings become effective when the printer is
turned on, reset, or initialized.
DIP switch settings are shown in the DIP switch tables starting on
page
3-7.
Changing a DIP switch setting
To change a DIP switch setting, first turn off the printer. Then use
a pointed object, such as a pen, to change the DIP switch settings.
A DIP switch is on when it is up, and off when it is down.
The new DIP switch settings take effect when the printer is turned
on.
3-6 Using the Printer
