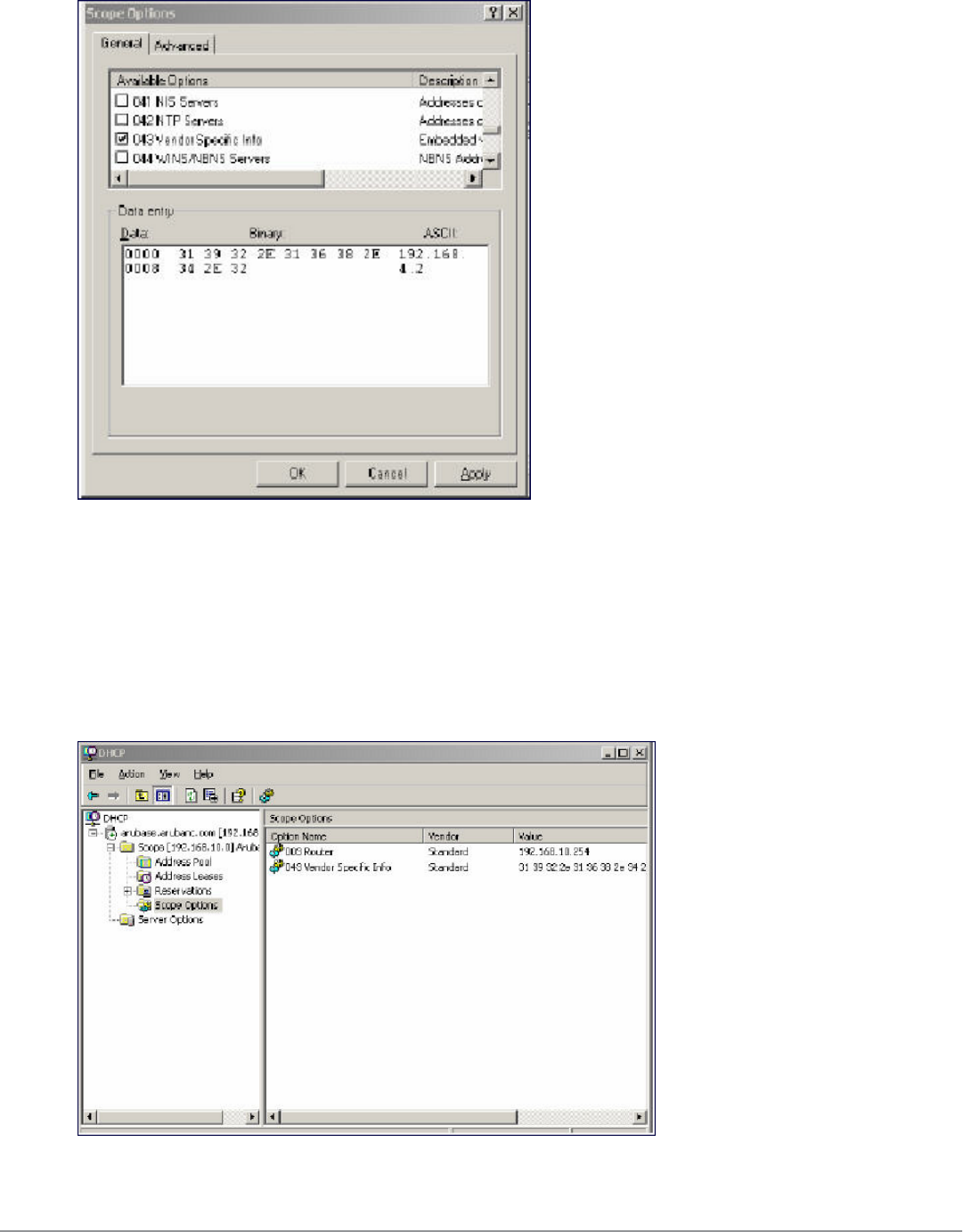

Figure 406: Scope Options Dialog Box.
4. In the Data Entry field, click anywhere in the area under the ASCII heading and enter the following information:
ASCII : Loopback address of the master controller
5. Click the OK button to save the configuration.
Option 43 is configured for this DHCP scope. Note that even though you entered the IP address in ASCII text, it
displays in binary form.
Figure 407: DHCP Scope Values
DellPowerConnectW-SeriesArubaOS6.2 | User Guide DHCP withVendor-SpecificOptions | 839
