28 ASUS TX97-X User’s Manual
III. INSTALLATION
(Connectors)
III. INSTALLATION

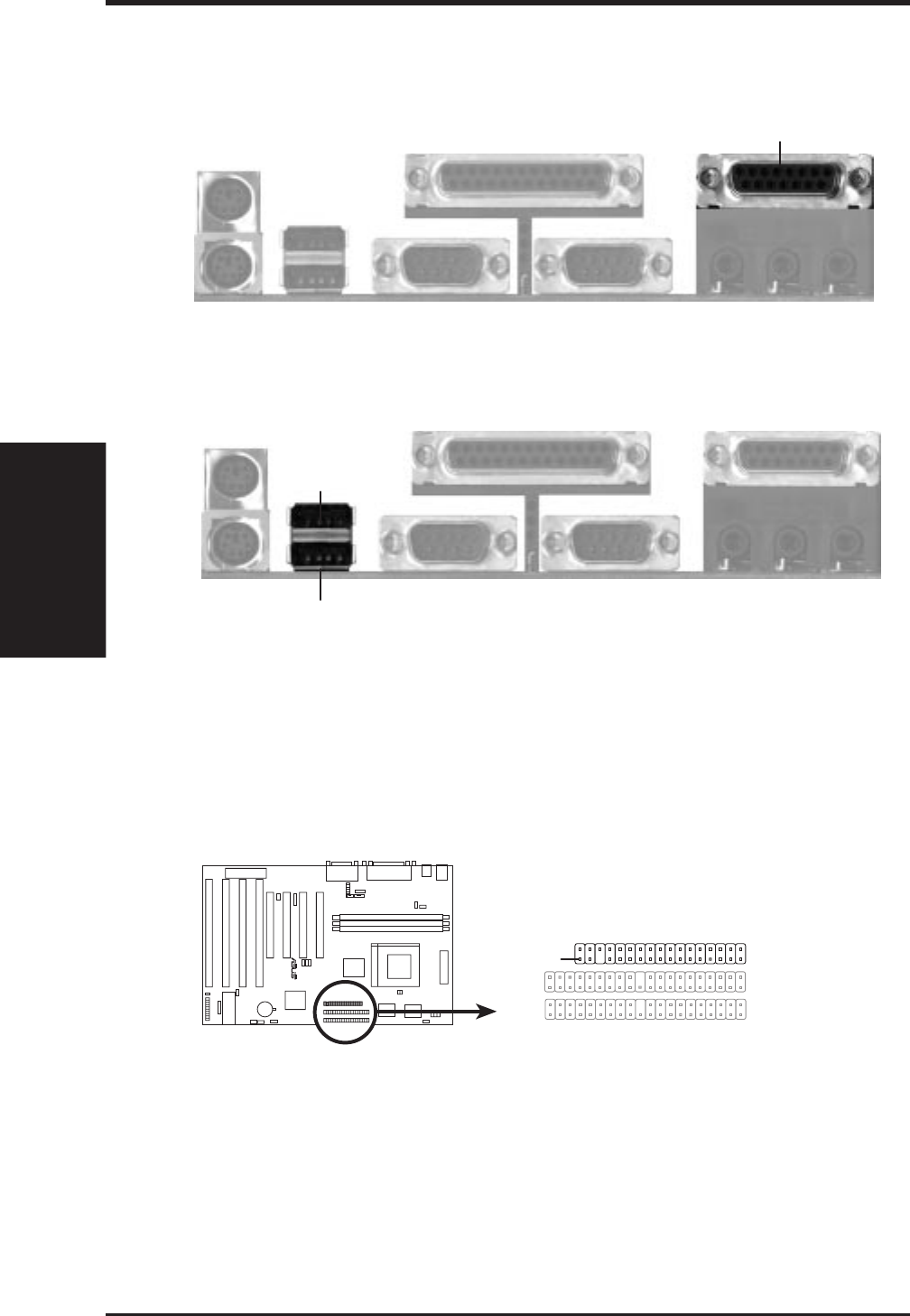

6. Joystick/Midi Connector (15-pin Female) (with optional onboard Audio)
You may connect game joysticks or game pads to this connector for playing
games. Connect Midi devices for playing or editing audio.
Joystick/Midi (15-pin Female)
7. Universal Serial BUS Ports 1 & 2 (Two 4-pin Female Sockets)
Two USB ports are available for connecting USB devices.
Univeral Serial Bus (USB) 2
USB 1
8. Floppy drive connector (34-pin block )
This connector supports the provided floppy drive ribbon cable. After connect-
ing the single end to the board, connect the two plugs on the other end to the
floppy drives. (Pin 5 is removed to prevent inserting in the wrong orienta-
tion when using ribbon cables with pin 5 plugged).
Floppy Drive Connector
Pin 1
Floppy Drive Connector
NOTE: Connect the Red stripe to Pin 1
R
