Item Description
Select VLAN ID Specifies the VLAN ID
IGMP Snooping
Status
Defines whether IGMP snooping is enabled on the VLAN. The possible field
values are:
z Enabled: Enables IGMP Snooping on the VLAN.
z Disabled: Disables IGMP Snooping on the VLAN. This is the default
value.
IGMP Query Status
Defines whether IGMP query is enabled on the VLAN. The possible field
values are:
z Enabled: Enables IGMP Query on the VLAN.
z Disabled: Disables IGMP Query on the VLAN. This is the default value.
Configuring ACL
Access Control List (ACL) allow network managers to define classification actions and rules for specific
ingress ports. A network manager can configure an ACL on an ingress port so that packets are either
admitted or denied entry. The user can also specify that when packets are denied entry, the ingress port
is also disabled.
This section includes the following topics:
z Configuring MAC Based ACL
z Configuring IP Based ACL
z Configuring ACL Binding
Configuring MAC Based ACL
This section includes the following topics:
z Defining MAC Based ACL
z Modifying MAC Based ACL
z Removing MAC Based ACL
z Viewing MAC Based ACL
Defining MAC Based ACL
The MAC Based ACL Setup Page allows network managers to define MAC Based ACL.
Click Device > ACL > MAC Based ACL > Setup. The MAC Based ACL Setup Page opens.

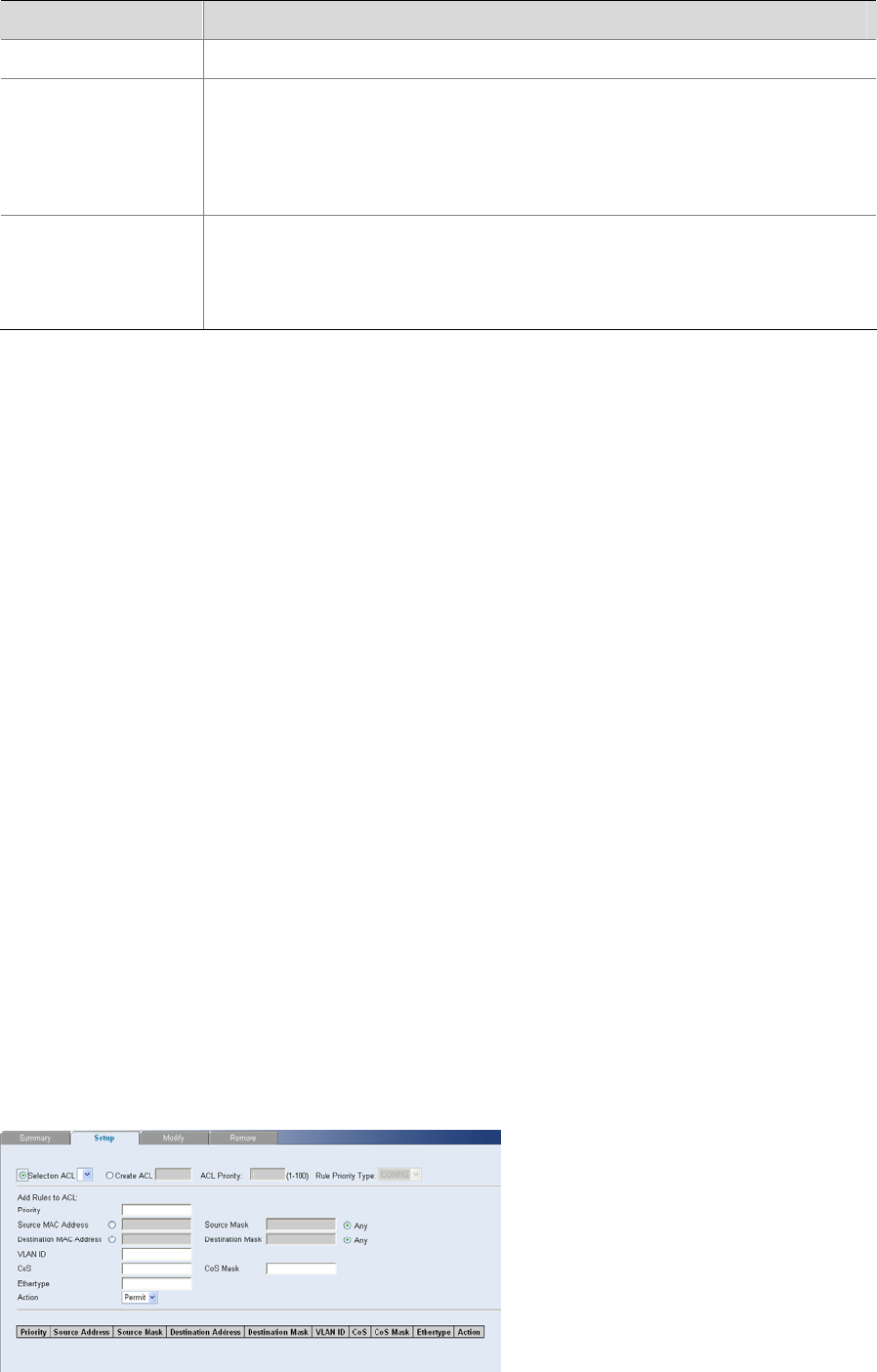

Figure 3-38 MAC Based ACL Setup Page
The MAC Based ACL Setup Page contains the following fields:
